MEASURING ROD EMC40

Manufacturer: Bosch Rexroth

Material #: R15612A007

Model : MEASURING ROD EMC40

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MEASURING ROD (R15612A007) is a force sensor designed to provide precise load sensing in a variety of applications. This corrosion-resistant stainless steel sensor is easy to mount and is suitable for both dynamic and static measurements. It boasts high shock and vibration resistance, ensuring robust performance and long-term stability thanks to the thin-film technology used in its construction. The MEASURING ROD EMC40 has an operating temperature range from -°C to °C with a compensated temperature range specified by the manufacturer. The product features a Polyurethane (PUR) black, shielded cable with specific cable cross-section and bending radius requirements for both static (x D) and dynamic (x D) applications. It maintains a bandwidth with tolerance, indicating its responsiveness within the kHz range. For electrical connections, it utilizes a female connector Mx type with pin configuration ensuring secure connectivity. Its protection class is IP, safeguarding against ingress of dust and moisture under certain conditions. The output signal provided by this device ranges from V to V with specified tolerances, nonlinearity, hysteresis, and temperature drifts across both zero point and measuring range per Kelvin. The MEASURING ROD EMC40 also includes options for load measuring pin or clevis mount with force measuring bolts for versatile mounting possibilities. These features allow for accurate tension and compression force measurements within its specified operating load of the measuring range. With nominal sizes available, this product group ID size b offers flexibility for integration into various systems requiring precise force measurement solutions. The device's weight is . kg providing an indication of its heft relative to its size L dimensions. Overall, the Bosch Rexroth MEASURING ROD EMC40 is engineered for applications that demand accurate load detection with high reliability and minimal signal deviation under challenging environmental conditions.

$3,086.46 USD

More are expected on August 5, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as August 5, 2024 when ordered in

MEASURING ROD EMC40

Force sensors for EMC

Unpacked Weight: 0.506 kg

High shock and vibration resistance For dynamic or static measurements Good reproducibility Easy mounting

1)	Load measuring pin

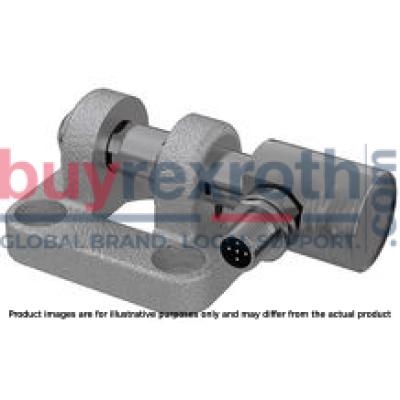

2)	Clevis mount with force measuring bolts

If your application requires precise load sensing, there is a clevis bearing block version with force measuring bolt available for this purpose. This option can be selected on the end of the piston rod as well as on the timing belt side drive.

Thanks to the thin-film technology used, the load cells are very robust and stable over the long term. The load cells are compliant with the EN 61326 standard for electromagnetic compatibility (EMC) and are designed to sense both tensile and compressive forces.

Easy mounting

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Cable diameter D tolerance	±0.2
Cable diameter D	5.9
Size a f8	12
Product information	with connection cable
Maximum operating temperature	+60
Permissible ambient temperature	-25 °C ... +80 °C
Minimum operating temperature	-20
Size E	28
Connection type 2	Flying leads
Electrical accessories for electromechanical cylinders	Force sensors
Type of cable	PUR black, shielded
Cable cross-section	4x0,34
Static bending radius	>10 x D
Dynamic bending radius	>5 x D
Operating temperature	-20 °C ... +60 °C
Power supply voltage	24
Suitable for drag chains	ja
Power supply voltage tolerance	±2
Max. zero setting function (tare)	24
Repeatability (of the measuring range)	±0.25
Max. ambient temperature, in motion	+80
Min. zero setting function (tare)	7.2
Output signal (measuring range) tolerance	±0.2
Measurement range	5
Rated voltage	250
Size c	49.5
Rated current	4
Temperature drift zero point (of the measuring range per Kelvin)	±0.05
Temperature drift above measuring range (of the measuring range per Kelvin)	±0.05
Compensated temperature max	+40
Compensated temperature min	+10
Productgroup ID	17
Size b	89
Measurement inaccuracy	±0.025
Permissible ambient temperature (max)	+80
Size d	35
Permissible ambient temperature (min)	-25
Bandwidth with tolerance	2,5 kHz ±0,2
Bandwidth tolerance	±0.2
Bandwidth	2.5
Connection	Connector M12x1
Connection type 1	Female connector, M12, 4-pin
Protection class	IP65
Output signal with tolerance	0 V ±0,03
Hardness	38 HRC
Operating load (of the measuring range)	150
Output signal	0
Breaking load (of the measuring range)	300
Output signal tolerance	±0.03
Non-linearity (of the measuring range)	±0.5
Output signal (measuring range) with tolerance	-10 ... +10 V ±0,2
Hysteresis (of the measuring range)	±0.2
Output signal (measuring range) min	-10
Output signal (measuring range) max	+10
Size L	5
Supply voltage (min. … max.)	± 2 V
Ambient temperature, in motion	+80 °C
Weight	0.506
Zero setting function (tare)	7.2 V ... 24 V
Connector outlet	angled
Nominal size	40

Metrological specifications

EMC		32	40	50	63	80	100	100XC
Measuring range	kN	1.3	5	8	16	22	45	56
Measurement inaccuracy	kN	± 0.007	± 0.025	± 0.04	± 0.08	± 0.11	± 0.23	± 0.28
Protection type		IP65
Hardness (load sensing range)		38 HRC
Operating load (of the measuring range)	%	150
Breaking load (of the measuring range)	%	300
Non-linearity (of the measuring range)	%	± 0.5
Repeatability (of the measuring range)	%	± 0.25
Hysteresis (of the measuring range)	%	± 0.2
Temperature drift zero point (of the measuring range per Kelvin)	%	± 0.05
Temperature drift above measuring range (of the measuring range per Kelvin)	%	± 0.05
Compensated temperature (min ... max)		+10 °C ... +40 °C
Operating temperature (min ... max)		-20 °C ... +60 °C

Electrical specifications

Output signal (0kN)	0 V ±0.03
Output signal (measuring range)	-10 ... +10 V ±0.2
Power supply	24 V ±2
Current consumption	25 mA (24 V)
Bandwidth	2.5 kHz ±0.2
Tare (zero setting function) (min ... max)	7.2 ... 24 V
Connection	Plug M12x1

Output signal 4 – 20 mA, reduced measurement range and test certificate on request.

Technische Daten Anschlusskabel

Length	m	5
Rated voltage	V	250
Rated current	A	4
Plug outlet		Angled
1. connection type		Female connector, M12, 4-pin
2. connection type		Flying leads
Type of cable		PUR black, shielded
Suitable for flexing installation		yes
Cable cross-section	mm2	4x0,34
Cable diameter D		5.9 mm ±0.2
Bending radius, stationary		>10 x D
Bending radius, flexing		>5 x D
Bending cycles		> 2 million
Ambient temperature, fixed (min ... max)		-25 °C ... +80 °C
Ambient temperature, in motion (min ... max)		-40 °C ... +80 °C

	Connection cable included in delivery

Connection diagram

Connection diagram for load measuring pin

Force measuring bolt

1 Supply (+)

2 Tare

3 GND

4 Output

5 Internal allocation

Connection cable

1 brn = brown, power supply (+)

2 wht = white, tare

3 blu = blue, GND

4 blk = black, output

Output signal depending on load direction

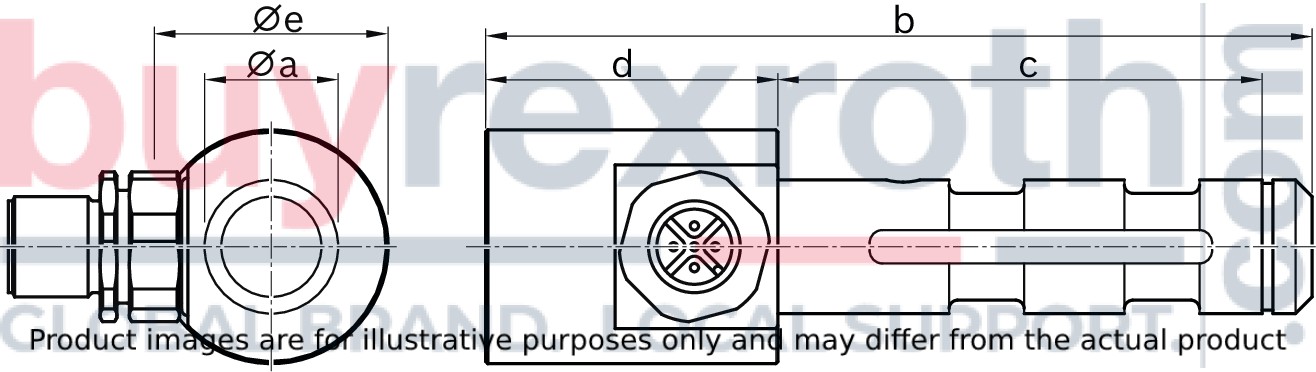

Dimensions

EMC			32	40	50	63	80	100	100XC
⌀a	f8	mm	10	12	16		20		35
b		mm	83	89	99	107	109	119	170
c		mm	43.5	49.5	58	66	67.5	77.5	124.5
d		mm	35
⌀e		mm	28						35

Note

The use of a hammer or press to fit the pivot pin is not permitted.

It may only be inserted by hand.

The pivot pin is not suitable to handling torque. It is secured axially and against rotation, like the standard pin, on one side of the clevis mount using the included retaining ring and clamping pin.

For force control at the controller level, a control component with an analog input is required.
