MEASURING ROD EMC100

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

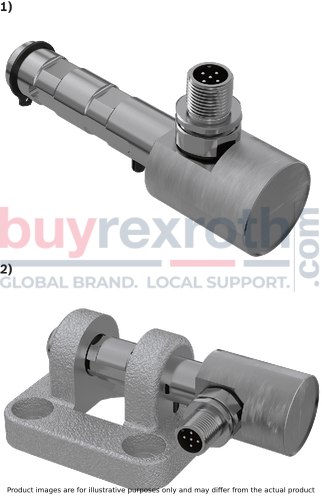

The Bosch Rexroth MEASURING ROD (R15616A007) is a high-precision force sensor designed for integration with electromechanical cylinders, particularly in the EMC series. This corrosion-resistant stainless steel sensor ensures easy mounting and is built to withstand harsh environments with a maximum operating temperature range specified by the manufacturer. It comes equipped with flying leads for connection and features a PUR black, shielded cable that maintains integrity under both static and dynamic conditions. The MEASURING ROD EMC100 is capable of dynamic or static measurements with high shock and vibration resistance, ensuring good reproducibility over time. Its design incorporates thin-film technology, contributing to its robustness and long-term stability. The sensor complies with the EN standard for electromagnetic compatibility (EMC), making it suitable for applications where EMC standards are a concern. It has been engineered to accurately sense both tensile and compressive forces, providing versatility in application. The unit offers an IP-rated female connector (Mx type) for secure electrical connections, ensuring reliable performance even in demanding industrial settings. The output signal of the MEASURING ROD varies within a specified tolerance, demonstrating its precision in force measurement tasks. For applications that require direct load sensing on moving parts, there is also an option for a clevis bearing block version with a force measuring bolt. This variant can be fitted on either end of the piston rod or on the timing belt side drive, offering flexibility in configuration according to specific requirements. In summary, the Bosch Rexroth MEASURING ROD EMC100 is an essential component for precise load detection in electromechanical systems where durability, reliability, and compliance with EMC standards are critical. Its robust construction paired with advanced sensing technology makes it suitable for both dynamic and static force measurements across various industrial applications.
