HOUSING MGD
Manufacturer: Bosch Rexroth
Material #: R150610050
Model : HOUSING MGD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

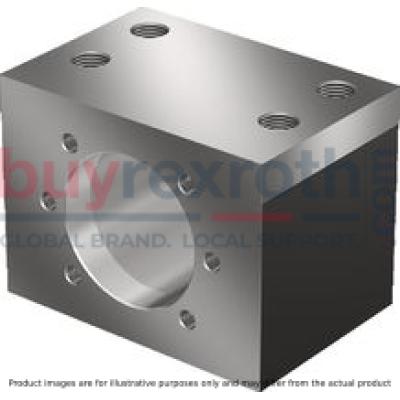

The Bosch Rexroth HOUSING MGD (R150610050) is a meticulously designed steel nut housing tailored for use with various types of nuts, including FEMEB, FDMEB, SEMEC, and FEDEB. Falling under the product group ID Size E and Size H, this particular model exemplifies precision engineering suitable for Rexroth ball screw assemblies. The HOUSING MGD features a hole pattern BB and comes in a nominal size X to ensure compatibility and optimal performance with the corresponding nut sizes. Its robust construction is indicative of its ability to support the mechanical demands placed upon it in various applications. As an accessory for ball screw assemblies, this nut housing plays a critical role in maintaining the integrity and efficiency of linear motion systems. The weight specifications of this model align with its design to provide a balance between durability and functionality without compromising on the system's overall efficiency. The Bosch Rexroth HOUSING MGD R150610050 stands as a testament to the company's commitment to producing high-quality components that meet stringent industry standards for performance and reliability.
$103.21 USD
Availability: 5 In Stock
Available for immediate shipmentQty: Delivered as early as December 23, 2024 when ordered in
Technical data and dimensions
|
Size |
Mass |
Hole pattern |
Hex socket cap screw |
A |
B |
D1 |
D6 |
E1 |
E2 |
H |
H1 |
H2 |
N |
S |
S1 |
T1 |
S2 |
T2 |
Clamping length |
|
d0 x P x Dw |
ISO 4762 |
H7 |
L |
||||||||||||||||
|
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||||||
|
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3 |
0.91 | BB2 | M8 | 50 | 35 mm ±0.01 | 28 | 38 | 50 mm ±0.1 | 20 mm ±0.1 | 24 mm ±0.01 | 48 | 10 | 20 | 8.4 | M10 | 15 | M5 | 10 | 37 |
|
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5 |
1.18 | 55 | 37.5 mm ±0.01 | 36 | 47 | 55 mm ±0.1 | 23 mm ±0.1 | 28 mm ±0.01 | 56 | 22 | M6 | 11 | 45 | ||||||
|
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5 |
1.33 | 40 mm ±0.01 | 40 | 51 | 60 mm ±0.1 | 30 mm ±0.01 | 60 | 49 | |||||||||||
|
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969 |
2.27 | M12 | 70 | 50 mm ±0.01 | 50 | 65 | 75 mm ±0.1 | 30 mm ±0.1 | 35 mm ±0.01 | 70 | 27 | 13 | M16 | 20 | M8 | 14 | 52 | ||
|
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6 |
3.61 | BB1 | M14 | 80 | 60 mm ±0.01 | 63 | 78 | 90 mm ±0.1 | 35 mm ±0.1 | 42 mm ±0.01 | 84 | 12 | 31 | 15 | M18 | 25 | 17 | 65.5 | |
|
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5 |
5.63 | M16 | 95 | 70 mm ±0.01 | 75 | 93 | 110 mm ±0.15 | 45 mm ±0.15 | 48 mm ±0.01 | 96 | 34 | 17 | M20 | 30 | M10 | 75 | |||
| 63 x 10R x 6 | 6.72 | 100 | 75 mm ±0.01 | 90 | 108 | 120 mm ±0.2 | 46 mm ±0.15 | 55 mm ±0.01 | 110 | 15 | 37 | 20 | 89 | ||||||
|
63 x 20R x 6,5 63 x 40R x 6,5 |
7.67 | 80 mm ±0.01 | 95 | 115 | 130 mm ±0.2 | 58 mm ±0.01 | 116 | M12 | 95 | ||||||||||
| 80 x 10R x 6,5 | 8.6 | 85 mm ±0.01 | 105 | 125 | 140 mm ±0.2 | 63 mm ±0.01 | 126 | 105 | |||||||||||
| 80 x 20R x 12,7 | 10.53 | 95 mm ±0.01 | 125 | 145 | 160 mm ±0.2 | 73 mm ±0.01 | 146 | 22 | 125 |
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
|
DW |
Ball diameter |
