HOUSING MGD

Manufacturer: Bosch Rexroth

Material #: R150620050

Model : HOUSING MGD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

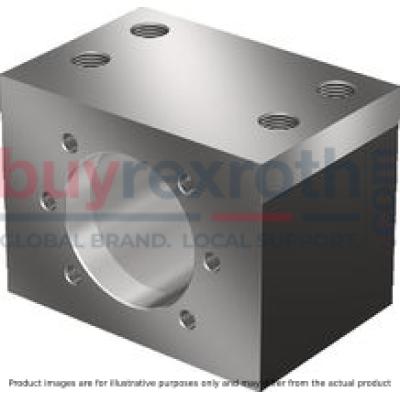

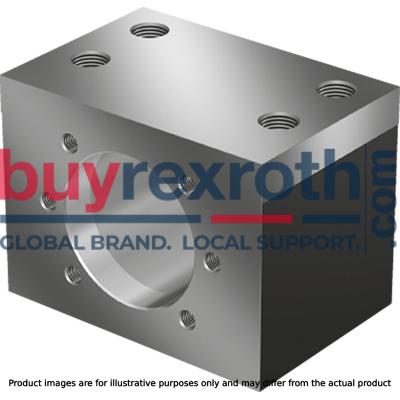

The Bosch Rexroth HOUSING (R150620050) is a high-quality steel nut housing designed to complement a range of Bosch Rexroth ball screw assemblies. Specifically crafted for use with FEMEB, FDMEB, SEMEC, and FEDEB nuts, this nut housing is part of the product group ID Size E and is compatible with Hole pattern BB. It ensures a precise fit and optimal performance when used in conjunction with the specified nuts. The model code HOUSING MGD indicates that this component belongs to the MGD series of steel nut housings, which are known for their robustness and durability. The Size H designation within this series signifies the specific dimensions and capabilities that this housing offers, ensuring it meets the exacting requirements for which it has been designed. As an accessory for Rexroth ball screw assemblies, the R150620050 nut housing plays a critical role in maintaining the integrity and functionality of the motion control system. It helps to secure the nut in place, providing stability and support during operation. This contributes to the overall precision and reliability of the machinery in which it is installed. The nominal size designation x indicates that this particular model has been manufactured to meet specific size requirements, ensuring compatibility with corresponding components. Although lightweight, its construction does not compromise on strength or performance. In summary, the Bosch Rexroth HOUSING MGD (R150620050) is an essential component for users who require a reliable nut housing that integrates seamlessly with select Bosch Rexroth ball screw assemblies. Its precise engineering guarantees compatibility with designated nut sizes and contributes to efficient machine operation across various applications.

$124.82 USD

More are expected on March 10, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as March 10, 2025 when ordered in

HOUSING MGD

Housing MGD 25x5/10/25

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 25x5/10/25

Unpacked Weight: 1.299 kg

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size A	55
Productgroup ID	17
Size E1	60
Size D1 h7	40
Size N	22
Size H	30
Size E2	23
Size D6	51
Size S	8.4
Hole pattern	BB2
Size T1	15
Size T2	11
Size L	49
Accessories for screw drives	Nut housing
Size B	40
Weight	1.299
Size H1	60
Nominal size	25x5/10/25

Technical data and dimensions

Size	Mass	Hole pattern	Hex socket cap screw	A	B	D1	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	Clamping length
d0 x P x Dw	Mass	Hole pattern	ISO 4762	A	B	H7	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	L
	kg			mm		mm	mm				mm	mm	mm	mm		mm		mm	mm
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3	0.91	BB2	M8	50	35 mm ±0.01	28	38	50 mm ±0.1	20 mm ±0.1	24 mm ±0.01	48	10	20	8.4	M10	15	M5	10	37
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5	1.18			55	37.5 mm ±0.01	36	47	55 mm ±0.1	23 mm ±0.1	28 mm ±0.01	56		22				M6	11	45
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5	1.33			55	40 mm ±0.01	40	51	60 mm ±0.1	23 mm ±0.1	30 mm ±0.01	60		22				M6	11	49
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969	2.27		M12	70	50 mm ±0.01	50	65	75 mm ±0.1	30 mm ±0.1	35 mm ±0.01	70		27	13	M16	20	M8	14	52
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6	3.61	BB1	M14	80	60 mm ±0.01	63	78	90 mm ±0.1	35 mm ±0.1	42 mm ±0.01	84	12	31	15	M18	25	M8	17	65.5
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5	5.63		M16	95	70 mm ±0.01	75	93	110 mm ±0.15	45 mm ±0.15	48 mm ±0.01	96	12	34	17	M20	30	M10	17	75
63 x 10R x 6	6.72			100	75 mm ±0.01	90	108	120 mm ±0.2	46 mm ±0.15	55 mm ±0.01	110	15	37				M10	20	89
63 x 20R x 6,5 63 x 40R x 6,5	7.67				80 mm ±0.01	95	115	130 mm ±0.2		58 mm ±0.01	116						M12		95
80 x 10R x 6,5	8.6				85 mm ±0.01	105	125	140 mm ±0.2		63 mm ±0.01	126								105
80 x 20R x 12,7	10.53				95 mm ±0.01	125	145	160 mm ±0.2		73 mm ±0.01	146							22	125

Legend

Symbol	Description
d0	Nominal diameter
P	Lead
DW	Ball diameter

Attention: If a ball screw assembly with a front lube unit is used, the front lube unit may project beyond the housing. This must be considered when calculating the stroke.

In addition to bolting, the housings should be locked in place by positive means (for example, two pins with a diameter equal to that of the screws).

We recommend using screws with a strength class of 8.8.

Tightening torque

See “Installation” section “Installation in the machine”

Reference edges are formed on both sides.

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
