LINEAR-SET LSGF-B-25-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

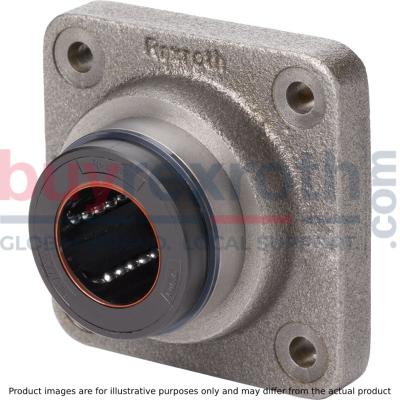

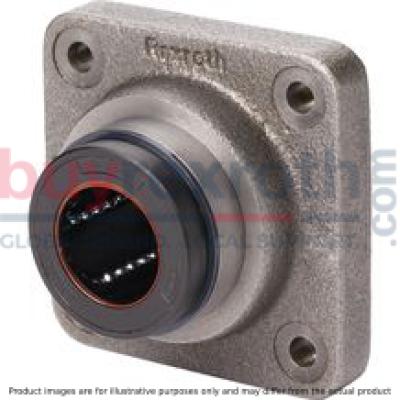

The Bosch Rexroth LINEAR-SET LSGF-B-25-DD (R108182540) is a high-quality linear motion component designed for precision applications. This linear set is crafted from robust steel and features a flange configuration with super linear bushing B, which lacks a self-alignment feature. The bushing comes with two integrated wiper seals that help maintain cleanliness and protect against contaminants, thus enhancing the longevity of the system. With a standard precision flanged housing made of lamellar graphite cast iron, this linear set ensures reliable support and smooth motion for the shaft diameter d. It includes two retaining rings and two additional spacer rings made from steel, which secure the shaft in place. The product has been engineered to operate within a permissible ambient temperature range of -20°C to +80°C. The LINEAR-SET LSGF-B-25-DD boasts an impressive static load rating C0 and dynamic load capacity C, making it suitable for various dynamic applications where precise linear movement is critical. The unit's radial clearance is not adjustable, and it does not require initial lubrication for operation, simplifying maintenance efforts. This model's design incorporates a breakaway force that accounts for the frictional drags generated by the linear bushings with integrated wiper seals when there is no radial load. It can tolerate a maximum acceleration amax and can achieve maximum permissible linear speeds vmax up to 5 m/s, although service life may be reduced due to increased wear on plastic parts at higher speeds. Ideal for vertical shaft designs within its modular series, the LINEAR-SET LSGF-B-25-DD offers versatility in its use across various applications requiring precise and clean linear guidance. With its weight of 1.07 kg, this unit stands out as a reliable solution in the field of linear motion technology.
