LINEAR-SET LSAO-B-25-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

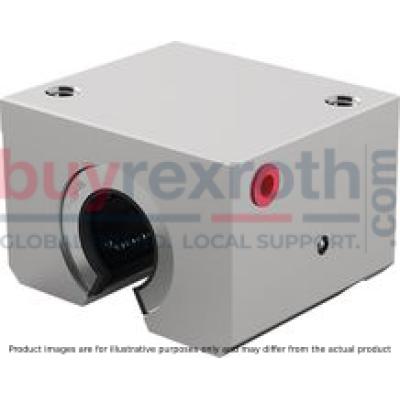

The Bosch Rexroth LINEAR-SET LSAO-B-25-DD (R103782520) is a high-precision linear motion set designed to provide smooth and accurate linear movement in various applications. This linear set is constructed from lightweight precision aluminum, offering a sturdy yet efficient solution for motion control. It features a super LB B linear bushing that does not include a self-alignment feature, ensuring stable and precise movements without the potential for misalignment. The LINEAR-SET LSAO-B-25-DD comes with two external seals, enhancing its durability by protecting against contaminants and extending the product's service life. The shaft diameter 'd' accommodates appropriate sizing for specific applications, while the grooved taper pin secures the bushing in place, ensuring reliable performance. This product is designed for long guides that require shaft support and exhibit a high level of rigidity. It is capable of handling dynamic load capacities with ease, as indicated by its size-specific ratings. The static load rating C also reflects the set's ability to withstand loads without movement. With maximum permissible speeds of up to 5 m/s, it is suitable for high-speed applications, although service life may be limited at these speeds due to increased wear on plastic parts. The LINEAR-SET can operate within an ambient temperature range of -20°C to 80°C, allowing for use in various environmental conditions. Its breakaway force and maximum acceleration amax are indicative of its robust performance capabilities. Lastly, this product has been tested thoroughly to ensure reliability over long distances traveled, with tests showing total travel from 100 km to 10^5 km without failure. The inclusion of integrated wiper seals contributes to frictional drags which are dependent on speed and lubrication conditions but remain minimal under no radial load conditions. Overall, this linear set combines durability with precision engineering to meet demanding motion control requirements.
