LINEAR-SET LSGF-B-16-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

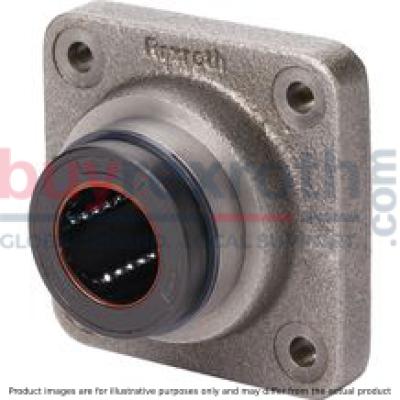

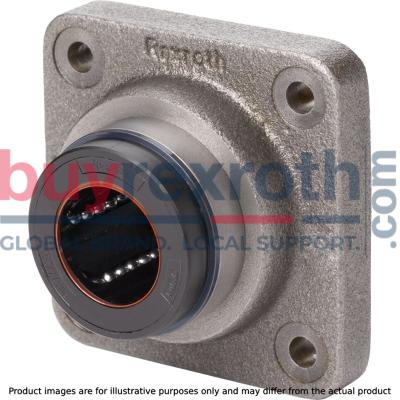

The Bosch Rexroth LINEAR-SET LSGF-B-16-DD (R108181640) is a high-quality linear set designed for precision linear motion applications. This product features a robust steel flange with two integrated wiper seals, ensuring clean operation by preventing the ingress of contaminants. The flanged housing is made from lamellar graphite cast iron, providing excellent rigidity and vibration damping characteristics. The super linear bushing B included in this set does not have a self-alignment feature, which means it is optimized for applications where alignment accuracy is controlled by the machine design. With a shaft diameter of 16 mm, this linear set is equipped with two retaining rings and additional spacer rings made of steel to maintain the integrity of the assembly. The radial clearance is not adjustable, and there is no initial lubrication provided, allowing users to apply lubrication best suited for their specific application needs. The LINEAR-SET LSGF-B-16-DD has been engineered to withstand a maximum ambient temperature range from -20°C to +80°C. It has a static load rating C0 and dynamic load capacity C1 that ensures reliable performance under various loading conditions. Its outer diameter and size specifications meet standard requirements for compatibility with various designs. This unit can handle maximum accelerations and offers breakaway forces that are conducive to smooth startup operations. It can achieve maximum permissible linear speeds up to 5 m/s; however, it's important to note that at these speeds, service life may be reduced due to increased wear on plastic components. Suitable for vertical shaft configurations, the Bosch Rexroth LINEAR-SET LSGF-B-16-DD provides an efficient solution for designers seeking a modular unit that complements the Linear Set series without compromising on performance or quality. With its friction force characteristic as defined in the product documentation, users can anticipate predictable resistance during motion. The product's weight of 0.7 kg allows for easy handling during installation or maintenance procedures.
