$175.32 USD
More are expected on January 4, 2028
Product Surcharge: $1.32 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 4, 2028 when ordered in
$175.32 USD
Product Surcharge: $1.32 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 4, 2028 when ordered in

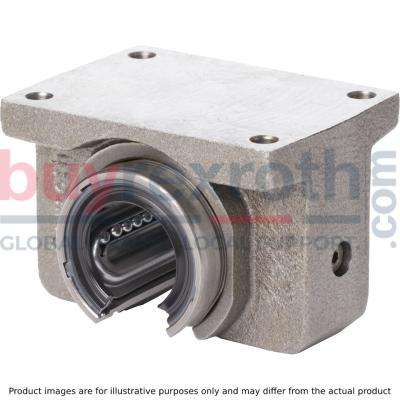

Precision housing (lamellar graphite cast iron/steel) |
Standard linear bushing with wiper seals |
Secured with locating screw |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Size V | 10 |
Series | Standard (metal) |
Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Size B1 (linear bushing) | 48 |
Size E1 | 68 |
Footnote permissible ambient temperature (min ... max) | for standard linear bushings without wiper seals |
Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. |
Size H | 35 |
Max. acceleration amax | 100 |
Permissible ambient temperature | -10 °C ... +100 °C |
Outer diameter D | 47 |
Breakaway force | 24 |
Maximum permissible linear speed vmax | 2.5 |
Size D | 47 |
Footnote static load capacity C0 | The load capacities apply for the main direction of loading. |
Static load rating C0 | 2390 |
Friction force | 8 |
Size A | 84 |
Productgroup ID | 17 |
Size W | 12.5 |
Permissible ambient temperature (max) | |
Size E2 | 45 |
Angle α | 50 |
Permissible ambient temperature (min) | |
Size S | 6.6 |
Shaft diameter d | 30 |
Linear guide type | Linear bushing and shaft |
Filter for linear bushings and shafts | Linear sets with linear bushings |
Format of linear bushings | O – Open |
Dynamic load capacity C | 2890 |
Size L | 68 |
Size B | 60 |
Weight | 1.172 |
Size D1 with tolerance |
