LINEAR-SET LSG-B-16-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

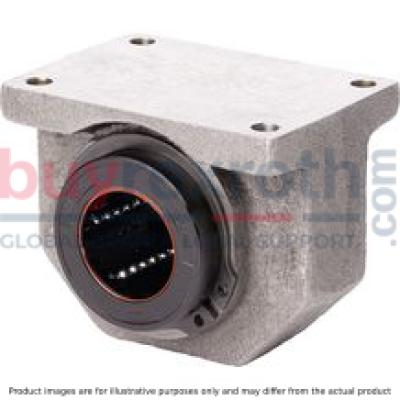

The Bosch Rexroth LINEAR-SET LSG-B-16-DD (R106581640) is a high-quality linear motion system designed for precision applications. This linear set features a closed steel setup with a standard precision housing made from lamellar graphite cast iron and a steel super linear bushing B without a self-alignment feature. It includes integrated wiper seals on both sides to protect against contaminants and maintain lubrication, which is crucial for the longevity and smooth operation of the system. The shaft diameter 'd' is meticulously crafted to ensure a snug fit with the bushings, and the product is equipped with two seals for enhanced protection. The LINEAR-SET LSG-B-16-DD is characterized by its size V series Super B no self-alignment feature, indicating its specialized design for applications requiring precise linear guidance without the need for self-correction. This model's dynamic load capacity 'C' and static load rating 'C' are calibrated to sustain considerable loads in the main direction of loading. The load capacities must be adjusted by specified factors when loads are applied in non-primary directions, ensuring versatility across various operational conditions. The product also features a maximum acceleration 'amax,' breakaway force, and maximum permissible linear speed 'vmax,' which define its responsiveness and operational limits. The Bosch Rexroth LINEAR-SET can operate within an ambient temperature range of -20°C to +80°C, making it suitable for diverse working environments. Its outer diameter 'D' corresponds with industry standards, facilitating compatibility with various machine designs. This linear motion system's weight has been optimized to contribute to overall equipment efficiency without compromising performance. With its robust construction and reliable performance, the Bosch Rexroth LINEAR-SET LSG-B-16-DD is an excellent choice for applications requiring precise linear movement and easy installation.
