SHAFT SUPPORT RAIL WU40-AF1-600

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

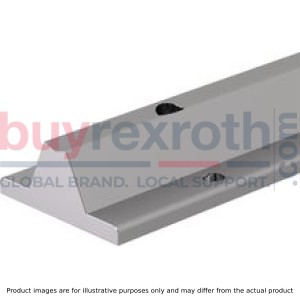

The Bosch Rexroth SHAFT SUPPORT RAIL WU40-AF1-600 (R105064000) is an integral component for creating precise and rigid linear guides, particularly suitable for scenarios where low height is a necessity. This shaft support rail is designed to accommodate a shaft diameter of 'd' and is constructed from high-quality aluminum, featuring a flange and bore spacing type configuration for enhanced stability. The standard length conforms to the specifications provided in the accompanying table, ensuring compatibility with various application requirements. The WU40-AF1-600 support rail is specifically engineered to work seamlessly with open linear bushings, providing an ideal solution for long guides or applications subjected to high loads where self-supporting shafts are not viable due to potential warping issues. The product offers additional degrees of freedom in the circumferential direction compared to profiled guide rails, making it an excellent choice for applications that demand precise linear motion even on less than perfect substructures. This model boasts extra rigidity thanks to the careful adaptation of the support rail dimensions to match the linear bushing size, resulting in an optimal pressure angle for fitting the shaft. This feature, along with large fastening bolts, ensures that the assembly maintains its structural integrity even under strenuous conditions. The WU40-AF1-600 can be used in unlimited lengths by connecting multiple shafts, catering to a wide range of application lengths and requirements. In summary, the Bosch Rexroth SHAFT SUPPORT RAIL WU40-AF1-600 (R105064000) stands out as a versatile and robust solution for constructing reliable linear guides that require additional support against bending forces while maintaining precision and low profile configurations.
