SHAFT SUPPORT RAIL WU12-AF1-600
Manufacturer: Bosch Rexroth
Material #: R105061200
Model : SHAFT SUPPORT RAIL WU12-AF1-600
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

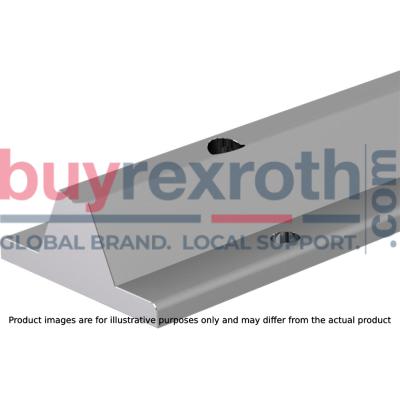

The Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) is a high-quality component designed for creating precise linear guides, particularly where low height and extra rigidity are required. This aluminum shaft support rail features a flange and bore spacing type, tailored to accommodate linear bushings optimally by ensuring an ideal pressure angle for fitting the shaft. Its robust construction with large fastening bolts provides additional rigidity, making it suitable for applications with open linear bushings.
Capable of handling long guides or high loads, the WU12-AF1-600 support rail is an excellent choice when self-supporting shafts are not viable due to potential shaft warping. It allows for unlimited length configurations through the use of interconnecting shafts. The design offers more degrees of freedom in the circumferential direction compared to profiled guide rails, proving advantageous in scenarios where other linear guides may falter because of imprecise substructures.
The product comes in standard lengths as indicated in Bosch Rexroth's tables and is made from aluminum, ensuring a lightweight yet durable solution. It is part of a product group that caters to various requirements within the realm of linear motion technology, providing support rails that can be customized based on specific needs.
In summary, the Bosch Rexroth SHAFT SUPPORT RAIL WU12-AF1-600 (R105061200) represents a versatile and reliable option for constructing linear guides that demand low-profile designs and high structural integrity. Its compatibility with precision steel shafts and various sizes of linear bushings makes it a flexible solution across different applications requiring accurate linear motion control.
$89.47 USD
More are expected on August 12, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as August 12, 2024 when ordered in
Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
|
β |
° |
50 | 46 | |||||||
|
A |
mm |
40 | 45 | 52 | 57 | 69 | 73 | 84 | 94 | 116 |
|
E |
mm |
29 | 33 | 37 | 42 | 51 | 55 | 63 | 72 | 92 |
|
H 1) |
22 mm ±0.01 | 26 mm ±0.01 | 32 mm ±0.01 | 36 mm ±0.01 | 42 mm ±0.01 | 50 mm ±0.01 | 60 mm ±0.01 | 68 mm ±0.01 | 86 mm ±0.01 | |
|
M |
mm |
5.8 | 7 | 8.3 | 10.8 | 11 | 15 | 19 | 25 | 34 |
|
O1 2) |
M4x20 | M5x20 | M6x25 | M8x30 | M10x35 | M10x40 | M12x45 | M14x50 | M16x60 | |
|
O2 3) |
M4x12 | M5x16 | M6x16 | M8x25 | M10x30 | M12x35 | ||||
|
T 4) |
mm |
75 | 100 | 120 | 150 | 200 | 300 | |||
|
t |
mm |
4.5 | 7.6 | 8.6 | 9 | 10 | 9.5 | 11.5 | 13 | 15 |
|
U1 5) |
mm |
4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
|
V |
mm |
5 | 6 | 7 | 8 | 9 | 10 | 12 | ||
| 1) | Measured with gauging shaft, nominal dimension d and length about 50 mm. |
| 2) | DIN 6912-8.8 |
| 3) | DIN6912-8.8, only applicable for bolting with steel or cast iron threads. |
| 4) | For transverse loads on the Linear Bushing opening and when approaching maximum load, as well as when dimensional accuracy is strictly required. |
| 5) | DIN 7980, discontinued. Spring washer commercially available. |
