R103685020

LINEAR-SET LSAE-B-50-DD

Manufacturer: Bosch Rexroth

Material #: R103685020

Model : LINEAR-SET LSAE-B-50-DD


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

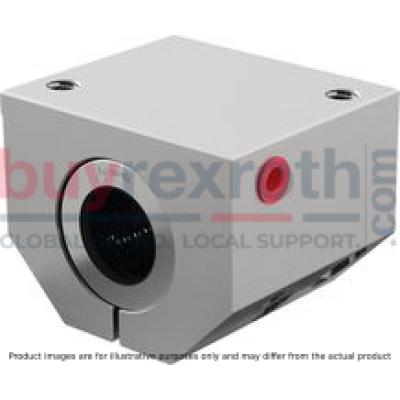

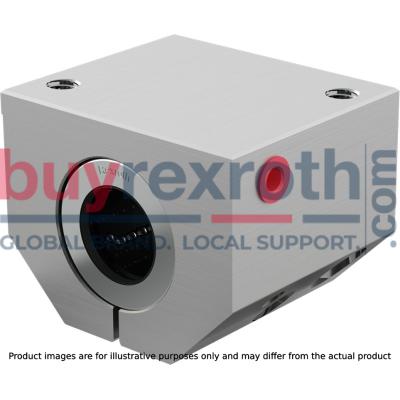

The Bosch Rexroth LINEAR-SET LSAE-B-50-DD (R103685020) is a high-precision linear motion set designed to provide smooth and accurate linear movement in various applications. This set includes an aluminum lightweight precision housing with a super linear bushing B that lacks a self-alignment feature, ensuring stable and precise motion. The shaft diameter is designed to accommodate standard sizes, and the inclusion of two external seals offers protection against contaminants, enhancing the longevity of the system. This linear set is adjustable, allowing for zero-clearance or preloaded guides through an adjusting screw that enables radial clearance adjustments. The product comes clamped to the h shaft's lower limit and is pre-set to zero-clearance, which ensures optimal performance right out of the box. The friction force generated by this model is influenced by factors such as speed and lubrication but remains low due to its design which includes integrated wiper seals on both sides. The dynamic load capacity (C) indicates that this linear set can handle significant loads in its main direction of loading. In cases where loading occurs in other directions, load capacities must be adjusted using specific factors provided for different shaft diameters. The static load rating also reflects the ability of this product to withstand static forces without deformation or failure. With a permissible ambient temperature range from -20°C to +80°C, it can operate effectively in various environmental conditions. Additionally, it has been tested for total travel ranging from 100 km to 10,000 km without failure, showcasing its durability and reliability over extended use. Weighing only 0.5 kg, the LINEAR-SET LSAE-B-50-DD is not only robust but also lightweight, making it suitable for applications where weight is a critical factor. Its maximum permissible linear speed reaches up to 5 m/s; however, service life may be limited at higher speeds due to increased wear on plastic parts. Overall, this Bosch Rexroth linear set offers a combination of precision movement control with durability and adjustability options suitable for a wide range of industrial applications requiring precise linear guidance systems.

$346.54 USD

More are expected on March 17, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as March 17, 2025 when ordered in
