LINEAR-SET LSA-A-20-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

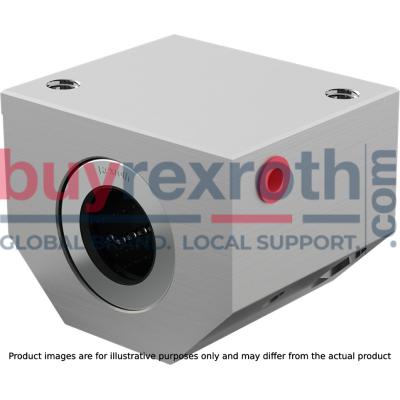

The Bosch Rexroth LINEAR-SET LSA-A-20-DD (R103562020) is a high-quality linear motion set designed for precision-guided applications. This set comprises a lightweight, precision-machined aluminum housing and a super linear bushing A with a self-alignment feature, ensuring smooth, accurate movement. The LINEAR-SET LSA-A-20-DD is equipped with two external seals to protect against contaminants and is relubricatable for extended service life. With a shaft diameter of 20 mm, this linear set is capable of handling dynamic loads effectively. It has been engineered to provide optimal performance under the main direction of loading, with specific load capacity factors provided for off-axis loading scenarios. The product features a maximum acceleration (amax) and can operate within an ambient temperature range from -20°C to 80°C. The outer diameter of the housing is designed to suit standard mounting configurations, while the set also exhibits low breakaway force for ease of movement initiation. It supports a maximum permissible linear speed (vmax), and tests have indicated that it can sustain travel distances ranging from 100 km to 10,000 km without failure, although higher speeds may limit service life due to increased wear on plastic components. The LINEAR-SET LSA-A-20-DD boasts an impressive static load capacity and friction force parameters that have been carefully determined to ensure reliable performance in various applications. With its closed format and standard version design, it is an ideal solution for those seeking robust linear guidance with straightforward installation requirements. The unit's weight has been optimized to contribute to the overall efficiency of the system it integrates into. This Bosch Rexroth linear set is suitable for applications requiring high precision and durability in their motion control systems while maintaining ease of maintenance through its relubricatable design feature.
