TORQUE RESISTANT BUSHING KBDR4-H-25DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

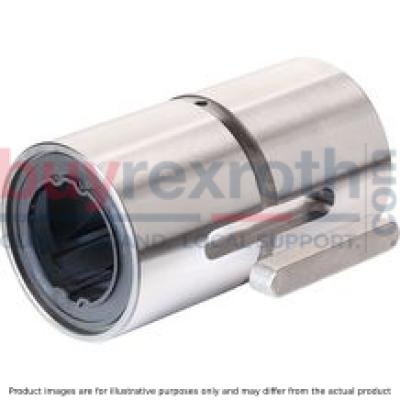

The Bosch Rexroth TORQUE RESIST.BUSH KBDR4-H-25DD (R072422500) is a high-precision component designed for self-supporting, torsionally stiff linear guides that utilize a single shaft. This robust torque-resistant linear bushing features a cylindrical sleeve design and is equipped with four ball guide grooves, which are essential for transferring torque effectively. The bushing's outer sleeve is hardened and ground to ensure durability and smooth motion, while the POM ball retainer and balls made of rolling bearing steel contribute to the bushing's reliable performance. With an integrated wiper seal, this model maintains cleanliness within the system by preventing contamination from entering the bushing. Additionally, it includes a fitting key for secure torque transmission and boasts relubrication capabilities for long-term maintenance. The KBDR4-H-25DD is specifically tailored for applications requiring precise linear motion with the ability to withstand torsional loads. Its dynamic load capacity and static load rating ensure that it can handle minimal values as per the provided specifications, considering that loading directions can vary. The permissible ambient temperature range allows operation within diverse environments, while maximum acceleration and linear speed capacities are outlined to match application requirements. Furthermore, the static torsional moment load capacity underscores its strength against twisting forces. This model's size L indicates its dimensions, which are critical when integrating into systems. It also features a weight specification that aids in determining its suitability for various design constraints. Overall, Bosch Rexroth's TORQUE RESIST.BUSH KBDR4-H-25DD provides an effective solution for demanding linear motion tasks where torsional resistance is crucial.
