LINEAR-SET LSHDR2T-30-WV-1200

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

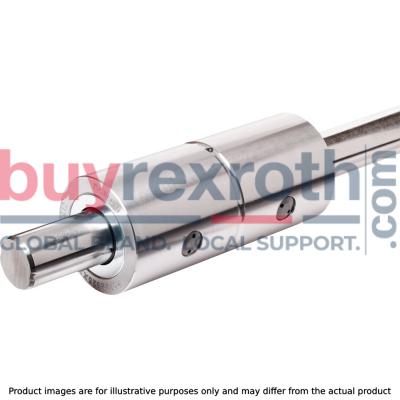

The Bosch Rexroth LINEAR-SET LSHDR2T-30-WV-1200 (R072253087) is a comprehensive linear motion system designed for precision and robustness in various applications. This particular linear set is constructed from steel and comprises two torque-resistant compact linear bushings within a standard compact steel sleeve. The set features one ball guide groove for shafts with diameters up to 30 mm, and two ball guide grooves for larger diameter shafts, ensuring stable and smooth movement. The system is equipped with a standard length shaft as per the provided table, enhancing its compatibility with a range of applications. Notably, this model does not include external seals, which suggests it's intended for environments where additional sealing against contaminants is not necessary or where external sealing solutions are separately provided. With keyway features for effective torque transmission and bearing plates that are hardened and set to zero clearance by the manufacturer, the LINEAR-SET LSHDR2T-30-WV-1200 ensures high precision and minimal play, leading to improved performance in applications that demand accuracy. The ability to withstand cocking loads and the provision for relubrication underscore its maintenance-friendly design. Regarding technical specifications, this linear set can operate within an ambient temperature range of -20°C to +80°C, can handle maximum accelerations (amax), and offers a maximum permissible linear speed (vmax). It has a dynamic load capacity (C) and static load capacity (C0), ensuring it can handle both dynamic movements and static forces effectively. The dynamic torsional moment load capacity (Mt) indicates its capability to resist twisting forces during operation. Weighing at 3.7 kg/m, the LINEAR-SET LSHDR2T-30-WV-1200 is relatively lightweight given its robust construction. Its size L specification determines the dimensions of the setup while maintaining stability against cocking loads due to its design. This product is particularly suited for applications requiring precise linear guidance with moderate to heavy load capacities while maintaining high rigidity and accuracy over time.
