BASE UNIT 65+ AL CURVE WH ESD

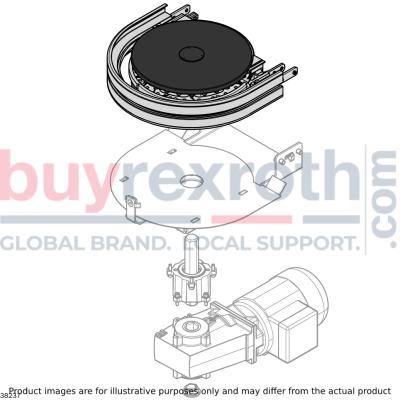

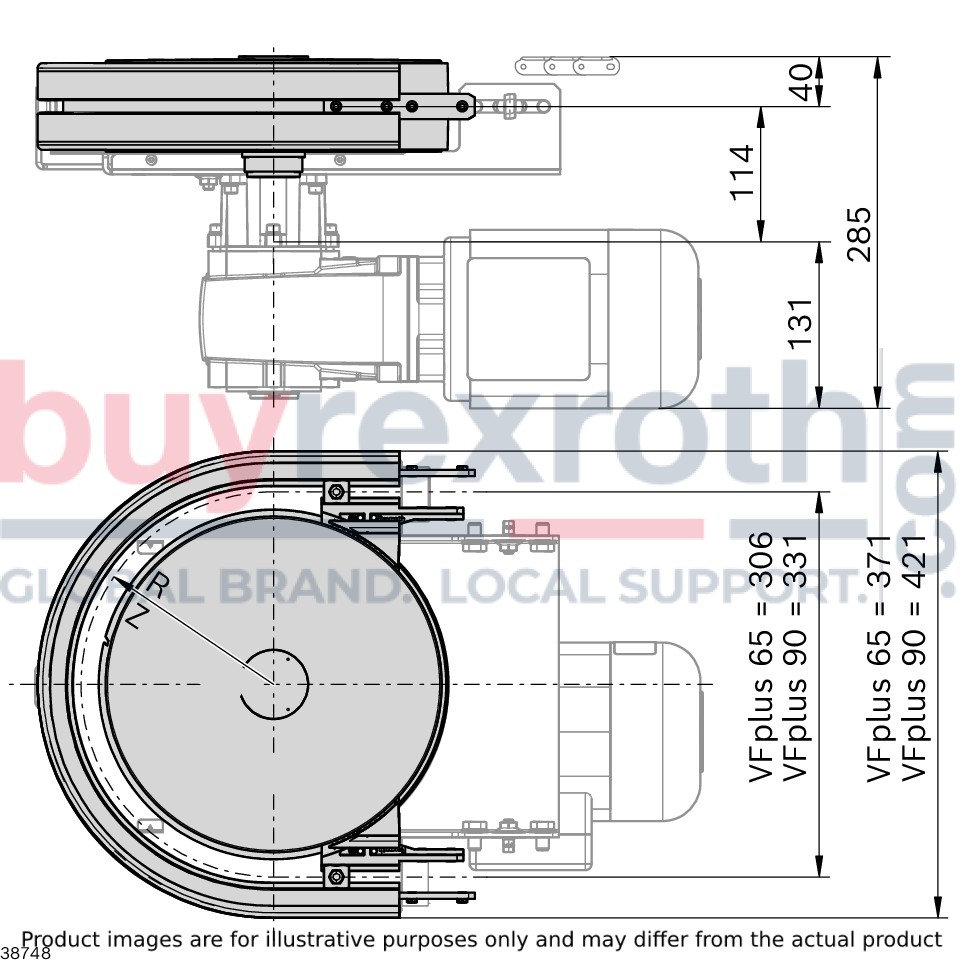

Basic unit curve wheel drive AL ESD VFplus 65 180°

Unpacked Weight: 5.4 kg

Driving several superimposed basic curve wheel units is easily implemented via the integrated hexagonal hollow shafts
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,82
Actual chain length	0,68
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Size [b]	65
Material information	Housing: Diecast aluminum,Chain wheel: PA ESD, black,Ball bearing: Non-rusting steel 1.4301/FDA
Recommended accessories	Connection kit alpine conveyor
Required accessories	Drive kit curve wheel,Assembly module,Slide rail,Leg set
Weight	5.4
