RETURN 65+ AL

Manufacturer: Bosch Rexroth

Material #: 3842547516

Model : RETURN 65+ AL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth RETURN 65+ AL (3842547516) is a versatile and innovative return unit designed for conveyor systems, offering a reduced noise emission due to its slide rails guided in the unit. This model allows for the installation of a drive kit on either the right or left side, which includes a motor, coupling, and flange. The inclusion of an integrated hexagonal hollow shaft as standard enables the drive of parallel conveyor sections or bridges. Constructed with robust materials such as diecast aluminum for the housing and nonrusting steel ball bearings with FDA-compliant grease filling, this unit ensures durability and compliance with food industry standards. The side elements feature slots for attaching holders for lateral guides, enhancing customization capabilities. The RETURN 65+ AL is equipped with ball bearings made of nonrusting steel that are sealed on both sides to ensure longevity and smooth operation. Its effective sliding rail length and actual chain length can be customized based on specific requirements, with additional versions available upon request from Bosch Rexroth's modification department. This return unit can function independently or be used in conjunction with a drive kit as a head drive without a chain bag, supporting all track widths and chain types. It has a permissible chain tensile force of Fmax 1250 N when functioning as a return unit and Fmax 2000 N when operating as a head drive without a chain bag. The RETURN 65+ AL can accommodate section lengths up to 30 m for return unit function and up to 100 m for drive function while maintaining conveying speeds of vN = 90 m/min. It is designed for use in combination with the drive kit as a wedge conveyor drive but is not intended for reversible operation. This product offers high flexibility, short delivery times due to its standardized components, and can implement parallel sections with zero gap dimension.

$591.87 USD

More are expected on December 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 30, 2024 when ordered in

RETURN 65+ AL

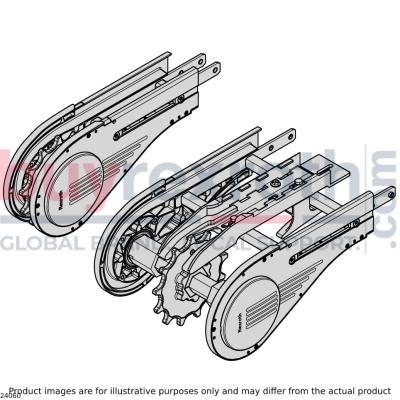

Return unit AL; VFplus 65

Unpacked Weight: 1.84 kg

In-stock, standardized components Side elements with slots for accommodating holders Pulling section; pushing and reversible operation on request High flexibility and short delivery times thanks to a novel drive concept Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar

Thanks to the innovative drive concept, the return unit can be operated simply by itself or supplemented with a drive kit to be operated as a head drive without chain bag. The section length is limited to a maximum of 7 m.

Size: all track widths Suitable chain types: all Permissible chain tensile force

Return unit function: Fmax = 1250 N

Head drive function without chain bag: Fmax = 600 N

With shortened maintenance interval, due to chain elongation

Section length for return unit function: L ≤ 30 m

Section length for drive function: L ≤ 7 m

Conveying speed: vN = 2-60 m/min, other speeds available on request Use in combination with the drive kit as a wedge conveyor drive Not suitable for reversible operation

Innovative drive concept

Reduced noise emission due to slide rails guided in the return unit
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,742
Actual chain length	2x 0,2
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	1.84
Scope of delivery	Incl. fastening material
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation,For use as a drive:Assembly moduleDrive kitMotor support
Size [b]	65
Material information	Housing: Diecast aluminum, powder-coated,Chain wheel: PA,Chain guide: PA,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA,Connector: Steel, galvanized,Ball bearing: Non-rusting steel 1.4301/FDA
Track width in direction of transport [b]	65

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Return unit AL

Note: High-pressure cleaning of the ball bearings is not permitted.
