RETURN 65+ STS

Manufacturer: Bosch Rexroth

Material #: 3842547528

Model : RETURN 65+ STS

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth RETURN 65+ STS (3842547528) is a sophisticated return unit designed to enhance the efficiency and functionality of conveyor systems. This model is characterized by its reduced noise emission, which is achieved through slide rails that are meticulously guided within the return unit. One of the standout features of this model is the flexibility in installation; it allows for the drive kit to be mounted on either side—right or left—depending on the specific requirements of the application. The RETURN 65+ STS also boasts an integrated hexagonal hollow shaft as standard, which facilitates the driving of parallel conveyor sections or bridges with ease. In terms of construction, this return unit features ball bearings crafted from non-rusting steel, complete with seals on both sides and an FDA-compliant grease filling, ensuring reliable performance in various environments, including those with stringent hygiene standards. The side elements come equipped with mounting options that provide versatility for attaching holders for lateral guides or similar components. This product supports a wide range of track widths and chain types while being able to withstand a maximum permissible chain tensile force. It can function as a standalone return unit or be paired with a drive kit to operate as a head drive without requiring a chain bag. The RETURN 65+ STS is designed for conveying speeds up to a certain limit, with other speeds available upon request. However, it should be noted that it is not suitable for reversible operation. Overall, Bosch Rexroth's RETURN 65+ STS offers an innovative and reliable solution for conveyor system applications where durability and versatility are paramount. Its design allows for easy coupling with standard drives, facilitating straightforward implementation in multi-track systems and providing users with a complete drive solution when combined with the configurable drive kit.

$724.37 USD

Availability: 4 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 18, 2024 when ordered in

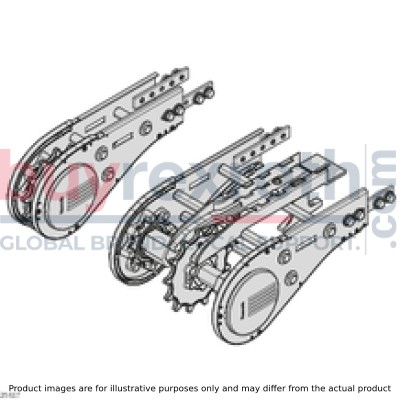

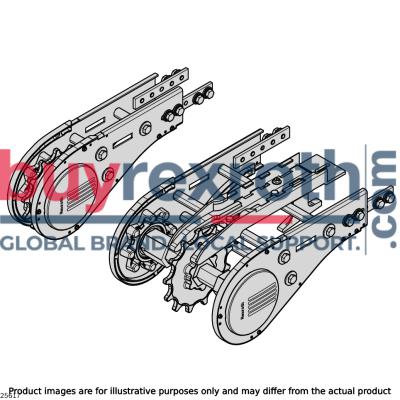

RETURN 65+ STS

Return unit STS; VFplus 65

Unpacked Weight: 2.68 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections possible through a pluggable shaft Side elements with mounting option for attaching holders for lateral guides, or similar

Thanks to the innovative drive concept, the return unit can be operated simply by itself or supplemented with a drive kit to be operated as a head drive without chain bag. The section length is limited to a maximum of 7 m.

Size: all track widths Suitable chain types: all Permissible chain tensile force

Return unit function: Fmax = 1250 N

Head drive function without chain bag: Fmax = 600 N

With shortened maintenance interval, due to chain elongation

Section length for return unit function: L ≤ 30 m

Section length for drive function: L ≤ 7 m

Conveying speed: vN = 2-60 m/min, other speeds available on request Use in combination with the drive kit as a wedge conveyor drive Not suitable for reversible operation

The standard drives are easy to couple and enable straightforward implementation of multi-track systems

Complete drive consisting of head drive direct and configurable drive kit

Complete drive consisting of return unit and configurable drive kit

Innovative drive concept

Reduced noise emission due to slide rails guided in the return unit
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Implementation of parallel sections possible through a pluggable shaft
Side elements with mounting option for attaching holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,742
Actual chain length	2x 0,2
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	2.68
Scope of delivery	Incl. fastening material
Delivery information	Assembled, connector enclosed
Required accessories	Slide rail,For use as a drive:Assembly moduleDrive kitMotor support
Size [b]	65
Material information	Chain wheel: PA,Chain guide: PA,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA,Ball bearing: Non-rusting steel 1.4301/FDA,Housing: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301
Track width in direction of transport [b]	65

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

RETURN 65+ STS

Manufacturer: Bosch Rexroth

Material #: 3842547528

Model : RETURN 65+ STS

Availability: 4 In Stock

Complete drive consisting of head drive direct and configurable drive kit

Complete drive consisting of return unit and configurable drive kit

Combination matrix

Return unit STS

Drive kit

Drive kit

Slide rail

Slide rail

Assembly module

Assembly module

Section support STS

Section support STS
