CURVE 90+ VERT STS 45°R500

Manufacturer: Bosch Rexroth

Material #: 3842547142

Model : CURVE 90+ VERT STS 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 90+ VERT STS 45?R500 (3842547142) is a high-quality vertical curve designed for sophisticated conveyor system applications. This component serves as a crucial transition piece for conveyor systems, enabling the smooth transition from horizontal to ascending sections and vice versa. The CURVE 90+ VERT STS 45?R500 is particularly adept at handling the increased chain tensile forces that result from the friction occurring at these pivotal points within the conveyor's path. This model boasts a deflection angle that makes it an optimal choice for infeed and outfeed processes on wedge conveyors, ensuring even small products are transferred efficiently without loss of stability or control. The product group ID, effective sliding rail length, actual chain length, and weight specifications are tailored to integrate seamlessly with STS section profiles. The unit comes fully assembled, including all necessary fastening material for mounting, facilitating easy installation and immediate operation within the system. Constructed from nonrusting steel for both the profile and connector components, the CURVE 90+ VERT STS 45?R500 promises durability and resistance to corrosion, ensuring long-term performance in various industrial environments. It is compatible with all deflection angles and radii as well as suitable chain types. Moreover, this model requires Advanced or Premium slide rails for optimal functionality. Designed with open section profiles, this vertical curve can accommodate different sizes and is versatile enough to be implemented across a range of conveyor designs without compromising on efficiency or reliability. Its robust construction paired with its comprehensive delivery scope ensures that it meets the rigorous demands of modern material handling operations.

$844.52 USD

More are expected on December 2, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 2, 2024 when ordered in

CURVE 90+ VERT STS 45°R500

Vertical curve STS VFplus 90 45°

Unpacked Weight: 2.508 kg

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.

A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.

Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	4x 0,59
Actual chain length	2x 0,59
Weight	2.508
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	90
Dimension [A]	548.7
Material information	Profile: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Vertical curve STS

Vertical curve STS VFplus 5°

Vertical curve STS VFplus 15°

Vertical curve STS VFplus 30°

Vertical curve STS VFplus 45°

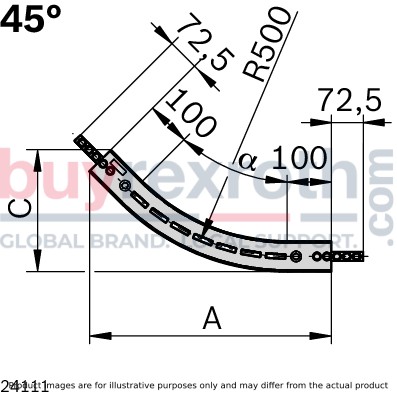

b	α	A	C	R
mm	°	mm	mm	mm
65	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
90	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
120	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
160	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
240	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500
320	5	246.2	79.5	500
	15	334.9	110.7	500
	30	453.9	181.4	500

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

CURVE 90+ VERT STS 45°R500

Manufacturer: Bosch Rexroth

Material #: 3842547142

Model : CURVE 90+ VERT STS 45

More are expected on December 2, 2024

Combination matrix

Vertical curve STS

Vertical curve STS VFplus 5°

Vertical curve STS VFplus 15°

Vertical curve STS VFplus 30°

Vertical curve STS VFplus 45°

Slide rail

Slide rail
