CURVE 320+ VERT STS 30°R500

Manufacturer: Bosch Rexroth

Material #: 3842547156

Model : CURVE 320+ VERT STS 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ VERT STS 30?R500 (3842547156) is a meticulously designed vertical curve component for conveyor systems, specifically tailored for the transition between horizontal and ascending sections. This product is part of the STS VFplus series and offers a deflection angle that facilitates smooth infeed and outfeed, particularly advantageous when handling smaller products. The effective sliding rail length and actual chain length vary, ensuring adaptability to different system requirements, while the weight contributes to the overall stability and durability of the installation. This Bosch Rexroth vertical curve boasts nonrusting steel construction in its profile, connectors, and support profiles from size b onwards, highlighting a commitment to quality and longevity. The product comes fully assembled with fastening materials included for easy mounting to STS section profiles. It also requires slide rails, which are calculated based on size b dimension A to ensure proper fitment. The CURVE 320+ VERT STS 30?R500 is compatible with all deflection angles and radii as well as suitable chain types. It features an open section profile design that necessitates using either Advanced or Premium slide rails for optimal performance. This vertical curve unit not only enhances conveyor efficiency but also increases chain tensile force through friction during operation, making it an essential component for any system looking to maintain smooth transitions across various conveyor elevations.

$1,090.10 USD

More are expected on December 6, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 6, 2024 when ordered in

CURVE 320+ VERT STS 30°R500

Vertical curve STS VFplus 320 30°

Unpacked Weight: 3.48 kg

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.

A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.

Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	8x 0,46
Actual chain length	2x 0,46
Weight	3.48
Notice	Effective sliding rail length with support profile
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320
Dimension [A]	453.9
Material information	Profile: Non-rusting steel 1.4301,Connector: Non-rusting steel 1.4301,Support profile from size 160: Non-rusting steel 1.4301

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

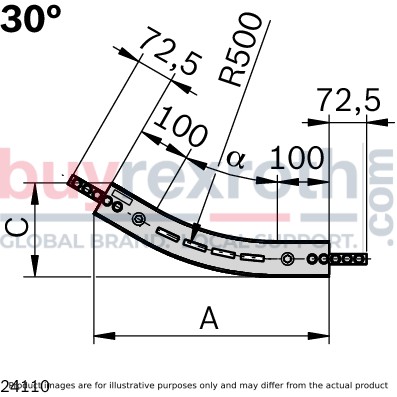

Vertical curve STS
