CURVE 320+ VERT AL 7,5°R500

Manufacturer: Bosch Rexroth

Material #: 3842547108

Model : CURVE 320+ VERT AL 7,5

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ VERT AL 75?R500 (3842547108) is a meticulously engineered vertical curve component designed for use in conveyor systems. This model serves as a critical transition point, allowing for seamless integration between horizontal and ascending conveyor sections. The deflection angle facilitates the movement of items through the curve, while the effective sliding rail length and actual chain length are tailored to ensure compatibility with various conveyor setups. Constructed from high-quality materials including anodized aluminum for the profile, galvanized steel for the profile connector, and die-cast aluminum for the cross connector, this vertical curve unit is built to withstand rigorous industrial environments. For larger configurations, it incorporates non-rusting steel in the support profile to maintain its durability and performance over time. The CURVE 320+ VERT AL 75?R500 is versatile enough to accommodate all sizes of deflection angles and radii as well as all suitable chain types. It's also compatible with both Advanced or Premium slide rails, enhancing its adaptability across different conveyor system designs. For those seeking to extend its functionality further, there's an option to upgrade this curve wheel into a drive or even an alpine conveyor system. Bosch Rexroth has taken measures to ensure that this vertical curve not only meets but exceeds operational expectations by incorporating low-friction curve technology. This innovation contributes significantly towards extending service life and minimizing downtimes, providing users with a reliable solution that optimizes their conveyor system performance while handling products efficiently and safely through transitional points.

$402.82 USD

More are expected on December 23, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 23, 2024 when ordered in

CURVE 320+ VERT AL 7,5°R500

Vertical curve AL VFplus 320 7.5°

Unpacked Weight: 2.414 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa. The chain tensile force is increased through the ensuing friction.

A vertical curve of 5° is recommended for the infeed and outfeed on the wedge conveyor, especially with small products.

Size: all Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	7.5
Productgroup ID	2
Effective sliding rail length	8x 0,26
Actual chain length	2x 0,26
Weight	2.414
Notice	Effective sliding rail length with support profile
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320
Dimension [A]	268.9
Material information	Profile: Aluminum, anodized,Profile connector: Steel, galvanized,Cross connector: Diecast aluminum,Support profile from size 160: Non-rusting steel 1.4301

	Material
Vertical curve AL VFplus 65 5°	Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast
Vertical curve AL VFplus 65 7.5°
Vertical curve AL VFplus 65 15°
Vertical curve AL VFplus 65 30°
Vertical curve AL VFplus 65 45°
Vertical curve AL VFplus 90 5°
Vertical curve AL VFplus 90 7.5°
Vertical curve AL VFplus 90 15°
Vertical curve AL VFplus 90 30°
Vertical curve AL VFplus 90 45°
Vertical curve AL VFplus 120 5°
Vertical curve AL VFplus 120 7.5°
Vertical curve AL VFplus 120 15°
Vertical curve AL VFplus 120 30°
Vertical curve AL VFplus 120 45°
Vertical curve AL VFplus 160 5°	Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast Support profile from size 160: stainless steel 1.4301
Vertical curve AL VFplus 160 7.5°
Vertical curve AL VFplus 160 15°
Vertical curve AL VFplus 160 30°
Vertical curve AL VFplus 160 45°
Vertical curve AL VFplus 240 5°
Vertical curve AL VFplus 240 7.5°
Vertical curve AL VFplus 240 15°
Vertical curve AL VFplus 240 30°
Vertical curve AL VFplus 320 5°
Vertical curve AL VFplus 320 7.5°
Vertical curve AL VFplus 320 15°
Vertical curve AL VFplus 320 30°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

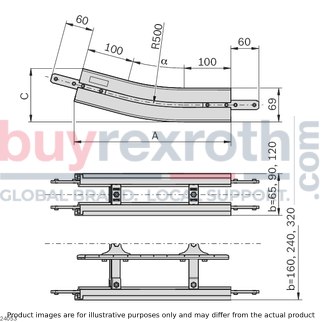

Vertical curve AL

b	α	A	C	R
mm	°	mm	mm	mm
65	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
90	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
120	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
160	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
	45	548.7	276.1	500
240	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
320	5	246.2	79.5	500
	7.5	268.9	86	500
	15	334.9	110.7	500
	30	453.9	181.4	500
