PROXIMITY SWITCH M12-M12 SN=4MM L=70

Manufacturer: Bosch Rexroth

Material #: 3842501548

Model : PROXIMITY SWITCH M12-M12 SN=4MM L=70

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth PROXIMITY SWITCH (3842501548) is a high-precision sensor designed for accurate detection of the position of workpiece pallets and sensing positions for various industrial applications such as lift transverse units, lift positioning units, and lift rotate units. This M12x70 sensor is engineered to provide reliable performance with a sensing range of 4mm, ensuring precise operation within automation systems. Its robust design with an M12 thread and a length of 70mm allows for easy integration into machinery, offering a straightforward solution for automating position detection tasks. This proximity switch is part of a sensor application matrix that includes various models with different configurations to suit specific requirements. The model number 3842501548 fits within the M12 diameter category with an M12 push-in fitting, indicating compatibility with corresponding system components. The versatility of this sensor makes it suitable for a wide array of applications where precise proximity sensing is critical. Equipped to handle challenging industrial environments, the Bosch PROXIMITY SWITCH ensures minimal downtime and maximum efficiency in production lines. Its durable construction and dependable accuracy make it an essential component in modern manufacturing processes that demand exactitude in position sensing and control tasks.

$78.01 USD

Availability: 139 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 12, 2024 when ordered in

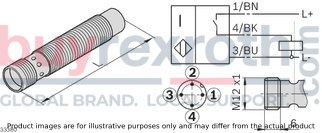

PROXIMITY SWITCH M12-M12 SN=4MM L=70

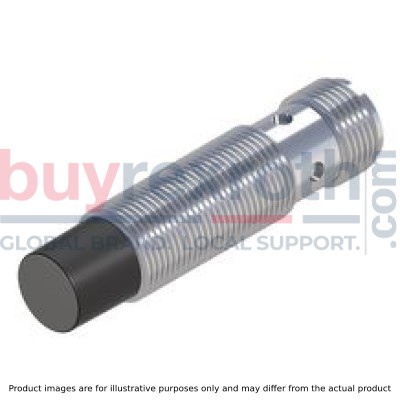

M12x70 sensor

Unpacked Weight: 0.035 kg

Detection of the position of a workpiece pallet, position sensing for lift transverse units, lift positioning units and lift rotate units.

Sensor application matrix

	Diameter with push-in fitting	Sensor
	M12 with M12	3842557633	3842501548	3842549814	3842558990	3842559541 ¹)
	M12 with M8	3842549813	3842549812	3842549811
	M8 with M8						3842551761
Position inquiry	AS 2/C-100, AS 2/C-250						X
	AS 2/C-400, AS 2/C-700	X
	AS 2/R-300, AS 2/R-700						X
	AS 2/R-1200, AS 2/R-2200	X
	AS 2/R-V-1200, AS 2/R-V-2200	X
	BS 2/R-300, BS 2/R-700						X
	BS 2/C-100, BS 2/C-250						X
	BS 2/R-H	X
	BS 2/R-V-1200	X
	BS 2/C-H	X
	CS/C						X
	EQ 2/TR			X
	EQ 2/TR-90			X
	EQ 2/T			X
	EQ 2/TE			X
	HQ 2/S			X
	HQ 2/O			X
	HQ 2/T			X
	HQ 2/U			X
	HQ 2/U2			X
	HQ 2/U-H			X
	HQ 2/C-H				X
	HQ 2/G-H				X
	HD 2			X
	HD 2/H			X
	KU 2/...						X
	PE 2			X
	PE 2/X, PE 2/H, PE 2/XP				X
	HP 2/L			X
	HP 2			X
	VE 2 position inquiry						X
	VA 2/D-130			X
WT position inquiry	SH 2/S	X
	SH 2/ST				X
	SH 2/S-H	X
	SH 2/U				X
	SH 2/UV	X
	SH 2/U-H	X
	SH 2/EP	X
	WI/M		X
	WI 2 (horizontal installation)					X
	WI 2 (vertical installation)		X
	WI 2/H (horizontal installation)					X
	WI 2/H (vertical installation)		X
	WI 2/D (horizontal installation)					X
	WI 2/D (vertical installation)		X
	HQ 2/U-H			X
¹) Nur für horizontalen Einbau bei den Wippen WI 2, WI 2/H und WI 2/D

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Thread size	M12 x 70
Switching function	Normally open (NO)
Operating voltage DC	10 ... 30
Ambient temperature [T]	-40... +85 °C
Push-in fitting	M12x1
Nominal switching distance [Sn]	4
Length [L]	70
Switching frequency	2500
Protection class	IP68
Operating current	200
Mechanical installation	Not flush
Function display	LED
Switching output	PNP
Weight	0.035
Notice	IEC 60947-5-2
Required accessories	Switch Bracket
Material information	Housing: Stainless steel, stainless,Active surface: LCP
Conformity	cULus,CE,EAC

No.		3842549814	3842557633	3842501548	3842558990	3842559541
Dimension	mm	M12x45	M12x45	M12x70	M12x60	M12x65
Protection type		IP67	IP68	IP68	IP68	IP67
Material entry		Housing: CuZn; nickel-free coating Active surface: LCP	Housing: CuZn; nickel-free coating Active surface: LCP	Housing: Stainless steel, non-rusting Active surface: LCP	Housing: CuZn; nickel-free coating Active surface: LCP	Housing: Brass Active surface: LCP
Max. operating temperature	°C	-25 ... +70	-25 ... +70	-40... +85	-25 ... +70	0 ... +60
Push-in fitting		M12x1	M12x1	M12x1	M12x1	M12x1
Overall length	mm	45	45	70	60	65
Rated sensing range	mm	4	8	4	8	8
Switching frequency	Hz	300	500	2500	1000	300
Operating current	mA	200	200	200	200	200
Mechanical installation		Flush	Not flush	Not flush	Not flush	Flush
Function display		LED	LED	LED	LED	LED
Switching output		PNP	PNP	PNP	PNP	PNP
Switching function		Normally open (NO)	Normally open (NO)	Normally open (NO)	Normally open (NO)	Normally open (NO)
Operating voltage	V DC	10 … 30	10 ... 30	10 … 30 V DC	10 ... 30	10 ... 30
Approvals		cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC	cULus, CE, EAC
Standard conformity		IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2	IEC 60947-5-2
