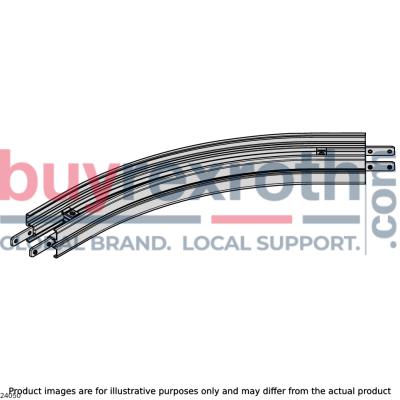

CURVE 90+ HOR AL 30° R700

Manufacturer: Bosch Rexroth

Material #: 3842547077

Model : CURVE 90+ HOR AL 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 90+ HOR AL 30? R700 (3842547077) is a high-quality component designed for facilitating a horizontal change in the direction of conveyor chains. It is an ideal solution for systems where space constraints make it impractical to use a curve wheel or where product dimensions and speeds necessitate an alternative method for directional change. This sliding curve is also beneficial in scenarios that require noise reduction during high-speed operations or when handling lengthy products on wedge conveyors. The CURVE 90+ HOR AL 30? R700 features an effective sliding rail length and actual chain length that can be specified according to the needs of the application. It has been designed with a deflection angle that accommodates various conveying situations. The profile of the sliding curve is made from anodized aluminum, ensuring durability and resistance to corrosion, while the profile connector is constructed from galvanized steel, and the cross connector from die-cast aluminum, offering robustness and longevity. This model comes fully assembled, including all necessary fastening materials for mounting to the AL section profile. Its design increases chain tensile force due to friction, which may lead to more effective handling of products on the conveyor system. The CURVE 90+ HOR AL 30? R700 can extend a curve wheel into a drive or alpine conveyor system, and its low-friction curve technology contributes to longer service life with reduced downtimes. Additional versions of this sliding curve can be requested through Bosch Rexroth's modification department. It requires Advanced or Premium slide rails for operation and supports all suitable chain types within its specified dimensions and deflection angles. With its open section profiles, this model ensures flexibility in application while providing reliable performance in various conveyor setups.

$501.77 USD

More are expected on December 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 30, 2024 when ordered in

CURVE 90+ HOR AL 30° R700

Sliding curve horizontal AL VFplus 90 30° R700

Unpacked Weight: 1.7 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology

The sliding curve is used for the horizontal change in direction of the chain, if the installation space for a curve wheel is not sufficient or the speeds or product dimensions do not permit transport via the curve wheel. The sliding curve is used to reduce noise at high speeds or when transporting long products in wedge conveyors. The chain tensile force is increased through the ensuing friction.

Size: 65, 90, 120 Deflection angles and radii Suitable chain types: all Version with open section profiles Requires the use of the Advanced or Premium slide rails

The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	4x 0,56
Actual chain length	2x 0,56
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	1.7
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	90
Dimension [A]	277.8
Material information	Profile: Aluminum, anodized,Profile connector: Steel, galvanized,Cross connector: Diecast aluminum

	Material
Sliding curve horizontal AL VFplus 65 30°	Profile: Aluminum, anodized Profile connector: Steel, galvanized Cross connector: Aluminum, die-cast
Sliding curve horizontal AL VFplus 65 45°
Sliding curve horizontal AL VFplus 65 90°
Sliding curve horizontal AL VFplus 90 45° R500
Sliding curve horizontal AL VFplus 90 90° R500
Sliding curve horizontal AL VFplus 90 30° R700
Sliding curve horizontal AL VFplus 90 45° R700
Sliding curve horizontal AL VFplus 90 90° R700
Sliding curve horizontal AL VFplus 120 30°
Sliding curve horizontal AL VFplus 120 45°
Sliding curve horizontal AL VFplus 120 90°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

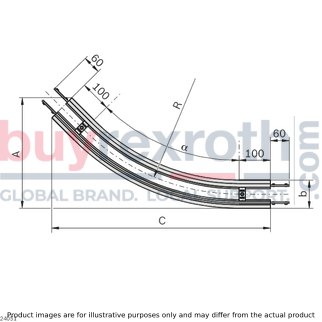

Sliding curve horizontal AL

b	α	A	C	R
mm	°	mm	mm	mm
65	30	204.4	552.9	700
	45	331.2	688.7	700
	90	832.5	832.5	700
90	45	294	556.1	500
	90	645	645	500
	30	277.8	559.1	700
	45	352.6	697.5	700
	90	845	845	700
120	30	255.7	566.6	700
	45	378.2	708.1	700
	90	860	860	700
