CURVE 320+ HOR AL 180° R500

Manufacturer: Bosch Rexroth

Material #: 3842547071

Model : CURVE 320+ HOR AL 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 320+ HOR AL 180° R500 (3842547071) is a roller curve horizontal AL VFplus designed for efficient and quiet changes in chain direction within conveyor systems. This product features patented roller elements that ensure low-friction transitions, contributing to a quieter operation and reducing wear on the system. The ball bearings are made from non-rusting steel, sealed on both sides, and filled with FDA-compliant grease, ensuring durability and suitability for environments where hygiene standards are paramount. The CURVE 320+ HOR AL 180° R500 is constructed with surfaces that come into contact with the chain made of FDA-compliant materials, making it an ideal choice for industries where food contact is possible. The deflection angle of the product allows for smooth directional changes in conveyor setups. This model's effective sliding rail length and actual chain length vary based on specific requirements, with additional versions available upon request through Bosch Rexroth's modification department. The profile of the CURVE 320+ HOR AL 180° R500 is made from anodized aluminum, while the roller carrier is constructed from PA. The ball bearings are composed of non-rusting steel that meets FDA standards, connectors are made from galvanized steel, and rollers are crafted from PA as well. Its design facilitates longer conveyor sections due to reduced friction at turns, which also extends the service life of the chain and minimizes system costs by reducing downtimes. This product comes fully assembled with all necessary fastening materials for mounting to the AL section profile included in its scope of delivery. It is adaptable to various chain types with different deflection angles available upon request. Additionally, this roller curve can be extended to a curve wheel drive or alpine conveyor if needed. Its innovative low-friction curve technology ensures long-lasting performance and reliability in facilitating horizontal directional changes within conveyor systems.

$1,920.49 USD

More are expected on November 12, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 12, 2024 when ordered in

CURVE 320+ HOR AL 180° R500

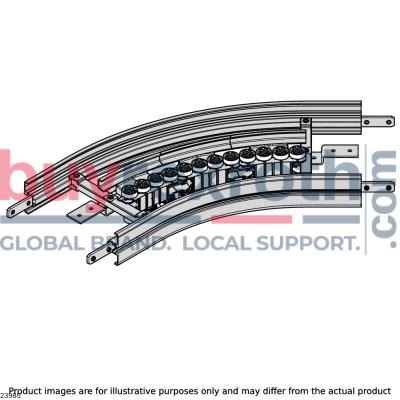

Roller curve horizontal AL VFplus 320 180°

Unpacked Weight: 9.794 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	9.794
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	320
Dimension [A]	1320
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
