CURVE 160+ HOR AL 180° R500

Manufacturer: Bosch Rexroth

Material #: 3842547063

Model : CURVE 160+ HOR AL 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 160+ HOR AL 180? R500 (3842547063) is a state-of-the-art roller curve designed for the smooth and quiet redirection of conveyor chains in horizontal applications. This innovative component features patented roller elements that significantly reduce friction, leading to quieter operation and less wear on the chain. The ball bearings in these rollers are made of non-rusting steel, sealed on both sides, and filled with FDA-compliant grease, ensuring durability and suitability for environments where hygiene standards are paramount. Constructed with surfaces that come into contact with the chain made from FDA-compliant materials, the CURVE 160+ HOR AL 180? R500 is ideal for use in industries where food safety is a concern. Its deflection angle facilitates a seamless change in direction, while the effective sliding rail length and actual chain length can be specified to meet various system requirements. The profile of this roller curve is crafted from anodized aluminum with a roller carrier made from PA, ensuring a lightweight yet robust design. The connectors are made from galvanized steel, providing secure assembly to other components. PA rollers further contribute to the low-friction properties of this unit. This product comes fully assembled and includes fastening materials for mounting to the AL section profile. It boasts an extension capability to become a curve wheel drive or alpine conveyor, enhancing its versatility in complex conveyor systems. With its low-friction curve technology, it promises longer service life and reduced downtimes. Suitable for all chain types, this Bosch Rexroth roller curve can be modified upon request to accommodate other deflection angles or specific application needs. Additional versions tailored to particular requirements can be obtained through Bosch Rexroth's modification department.

$1,681.98 USD

More are expected on December 26, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 26, 2024 when ordered in

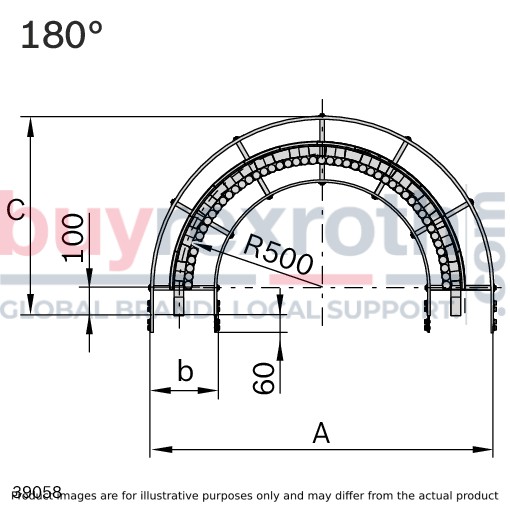

CURVE 160+ HOR AL 180° R500

Roller curve horizontal AL VFplus 160 180°

Unpacked Weight: 9.16 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant materials

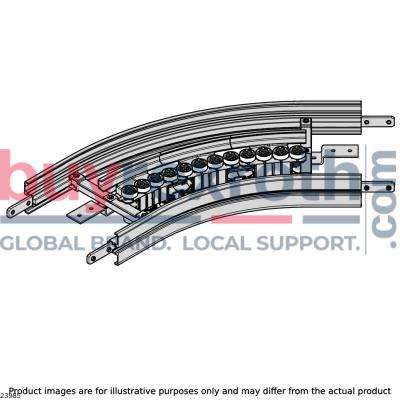

The low-friction roller curve is used for the horizontal change in direction of the chain. Roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Other deflection angles on request Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

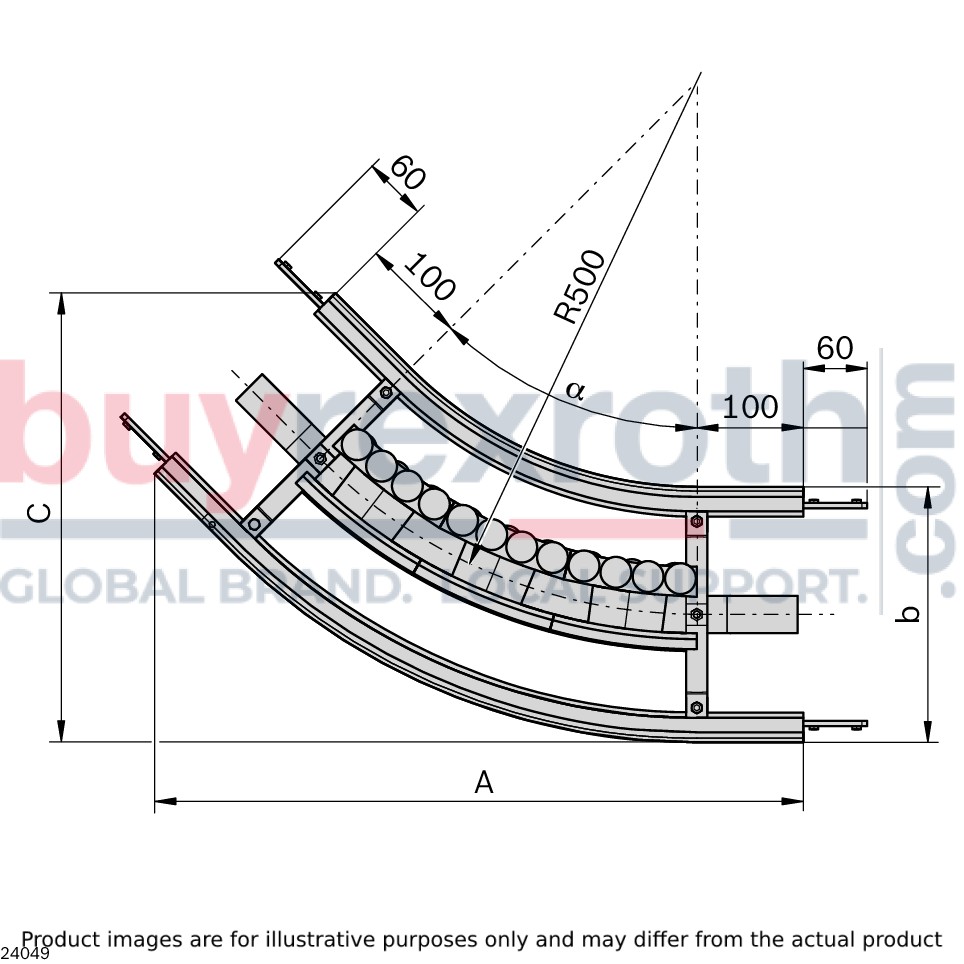

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	5x 1,77
Actual chain length	2x 1,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	9.16
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	160
Dimension [A]	1160
Material information	Profile: Aluminum, anodized,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Rollers: PA

	Material
Roller curve horizontal AL VFplus 160 30°	Profile: Aluminum, anodized Roller carrier: PA 66 Ball bearings: stainless steel/FDA Connector: steel; galvanized Rollers: PA
Roller curve horizontal AL VFplus 160 45°
Roller curve horizontal AL VFplus 160 90°
Roller curve horizontal AL VFplus 160 180°
Roller curve horizontal AL VFplus 240 30°
Roller curve horizontal AL VFplus 240 45°
Roller curve horizontal AL VFplus 240 90°
Roller curve horizontal AL VFplus 240 180°
Roller curve horizontal AL VFplus 320 30°
Roller curve horizontal AL VFplus 320 45°
Roller curve horizontal AL VFplus 320 90°
Roller curve horizontal AL VFplus 320 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
