CAM WHEEL 120+ AL 180°

Manufacturer: Bosch Rexroth

Material #: 3842547059

Model : CAM WHEEL 120+ AL 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547059) is a critical component designed for efficient and reliable conveyor operations. This model is particularly tailored for use in systems that require horizontal and vertical changes in direction, such as wedge conveyors. The CAM WHEEL 120+ AL 180° features a ball bearing made of non-rusting steel with seals on both sides and FDA-compliant grease filling, ensuring durability and compliance with strict hygiene standards. The surfaces that come into contact with the conveyor chain are also made from FDA-compliant materials, minimizing the risk of contamination. The CAM WHEEL's housing is constructed from die-cast aluminum, while the chain wheel itself is made from white PA (Polyamide), offering a robust solution for conveying applications. With its effective sliding rail length and actual chain length customization options, this model provides flexibility to meet various system requirements. The deflection angle capability allows for smooth directional changes within the conveyor system, which can significantly enhance operational efficiency. Designed to accommodate all suitable chain types, the CAM WHEEL ensures extended service life and reduced downtime thanks to its low-friction curve technology. It comes fully assembled, including fastening materials for mounting to the AL section profile, making installation straightforward. For safety reasons, when using circuit systems without chain return in the bottom run employing a curve wheel or connection drive, an appropriate cover must be utilized. Additional versions of this component can be requested through Bosch Rexroth's modification department to cater to specific needs or applications. With its combination of high-quality materials and advanced design features, the Bosch Rexroth CAM WHEEL is an essential element for any conveyor system looking to achieve smooth operation and compliance with food safety regulations.

$673.12 USD

More are expected on November 13, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as November 13, 2024 when ordered in

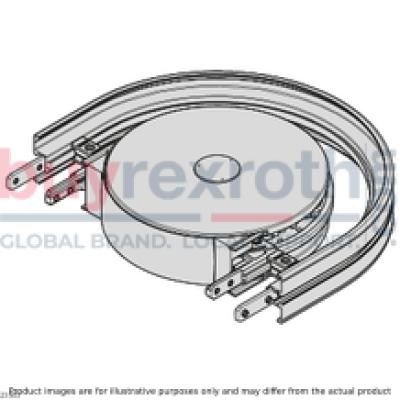

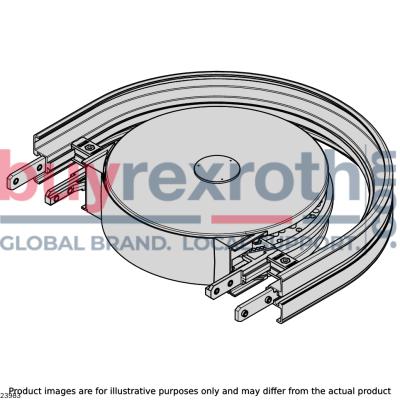

CAM WHEEL 120+ AL 180°

Curve wheel AL VFplus 120 180°

Unpacked Weight: 3.8 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant material No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 Deflection angles Suitable chain types: all For circuit systems without chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant material
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	2x 1,01
Actual chain length	2x 0,77
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.8
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	120
Dimension [A]	240.5
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Curve wheel AL VFplus 65 30°	Housing: diecast aluminum Chain wheel: PA; white Ball bearings: stainless steel/FDA
Curve wheel AL VFplus 65 45°
Curve wheel AL VFplus 65 90°
Curve wheel AL VFplus 65 180°
Curve wheel AL VFplus 90 30°
Curve wheel AL VFplus 90 45°
Curve wheel AL VFplus 90 90°
Curve wheel AL VFplus 90 180°
Curve wheel AL VFplus 120 30°
Curve wheel AL VFplus 120 45°
Curve wheel AL VFplus 120 90°
Curve wheel AL VFplus 120 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Curve wheel AL

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	324.5	279.4	153
	45	185.5	324.5	301.9	153
	90	185.5	324.5	285.5	153
	180	185.5		285.5	153
90	30	210.5	349.5	291.9	165.5
	45	210.5	349.5	319.6	165.5
	90	210.5	349.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	379.5	306.9	180.5
	45	240.5	379.5	340.8	180.5
	90	240.5	379.5	340.5	180.5
	180	240.5		340.5	180.5
