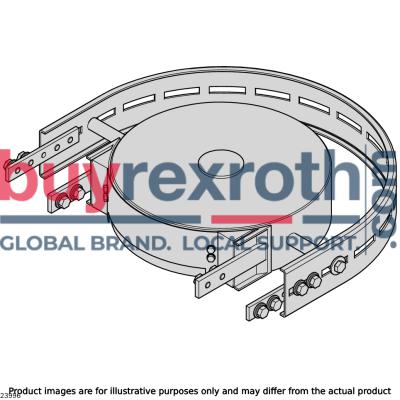

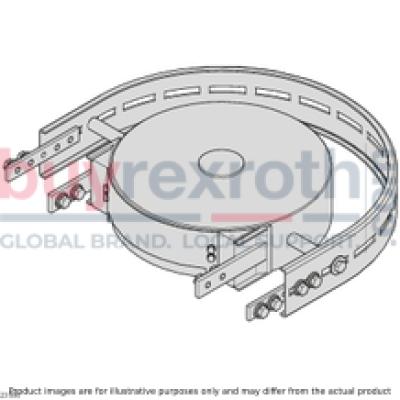

CAM WHEEL 65+ STS 180°

Manufacturer: Bosch Rexroth

Material #: 3842547114

Model : CAM WHEEL 65+ STS 180

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL 65+ STS 180° (3842547114) is an essential component designed for seamless integration into conveyor systems, particularly those requiring hygienic conditions such as in the food and pharmaceutical industries. This curve wheel is engineered to facilitate a horizontal change in direction of the conveyor chain, ensuring a low-friction transition even at very small radii. Its easy-to-clean design features a ball bearing constructed from non-rusting steel, complete with seals on both sides and FDA-compliant grease filling, guaranteeing durability and compliance with stringent health standards. The surfaces that come into contact with the conveyor chain are made from FDA-compliant materials to prevent contamination. The CAM WHEEL's design avoids any protruding contours above the chain plate height, which could otherwise interfere with smooth operation. Versatile in its application, it can be utilized both horizontally and vertically, making it suitable for wedge conveyors. The product comes fully assembled, including fastening materials for mounting to STS section profiles. The housing of the CAM WHEEL is made from non-rusting steel, while the chain wheel itself is crafted from white PA material. It supports various deflection angles; however, customers can request additional angles if needed. Suitable for all types of chains used within its specifications, this curve wheel by Bosch Rexroth stands out for its effectiveness in facilitating direction changes within conveying systems while maintaining hygiene and efficiency.

$750.88 USD

Availability: 2 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 12, 2024 when ordered in

CAM WHEEL 65+ STS 180°

Curve wheel STS VFplus 65 180°

Unpacked Weight: 4.7 kg

Surfaces in contact with chain made of FDA-compliant materials No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all

Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	180
Productgroup ID	2
Effective sliding rail length	2x 0,82
Actual chain length	2x 0,68
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.7
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Curve wheel STS

Curve wheel STS VFplus 30°

Curve wheel STS VFplus 45°

Curve wheel AL VFplus 90°

Curve wheel STS VFplus 180°

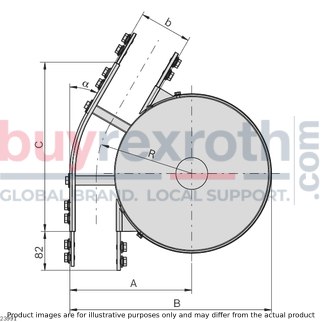

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	322.5	279.4	153
	45	185.5	322.5	301.9	153
	90	185.5	322.5	285.5	153
	180	185.5		287.5	153
90	30	210.5	347.5	291.9	165.5
	45	210.5	347.5	319.6	165.5
	90	210.5	347.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	377.5	306.9	180.5
	45	240.5	377.5	340.8	180.5
	90	240.5	377.5	340.5	180.5
	180	240.5		340.5	180.5

Note: High-pressure cleaning of the ball bearings is not permitted.
