SWITCH BRACKET SH2/S-H M12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

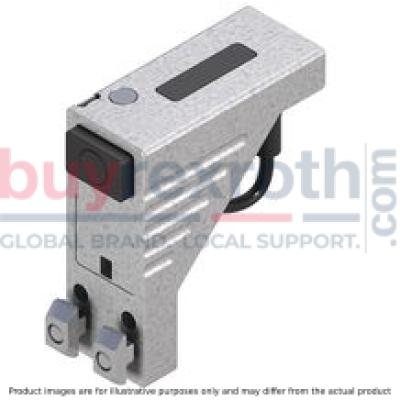

The Bosch Rexroth SWITCH BRACKET SH2/S-H (3842537280) is a robust metal bracket designed to secure an M12 sensor, facilitating lateral sensing of workpiece pallet positions on conveyor systems. This switch bracket is particularly noted for its sturdy construction, capable of supporting loads up to 100 kg, ensuring reliable operation in demanding environments. The design includes an inspection window that allows users to easily check the sensor's operating state without dismantling the setup. One of the key features of this bracket is its switch cover, which provides added protection for both the sensor and its connecting cable from external elements and potential damage. The simplicity of mounting and sensor replacement is a standout aspect; sensors can be mounted flush within the bracket without requiring any adjustments, thanks to a predefined sensing range. This feature significantly reduces downtime during maintenance or sensor swaps. Compatibility with ST 2/… sections having a profile width of 45 mm or ST 2/…-H sections with a profile width of 50 mm makes this switch bracket versatile for different setups within conveyor systems. Additionally, when it comes time to change sensors, the process is streamlined; users can quickly release and replace sensors by loosening a dedicated clamping screw while keeping the bracket firmly in place. The integrated cable routing and clamping mechanism provided within the design ensures that cables are not only neatly organized but also securely fastened and shielded from potential hazards. These thoughtful design aspects make the Bosch SWITCH BRACKET SH2/S-H (3842537280) a reliable solution for maintaining precise control over automated material handling processes where accurate positioning and sensing are critical.
