***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

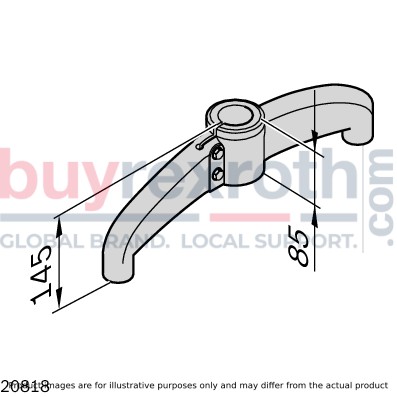

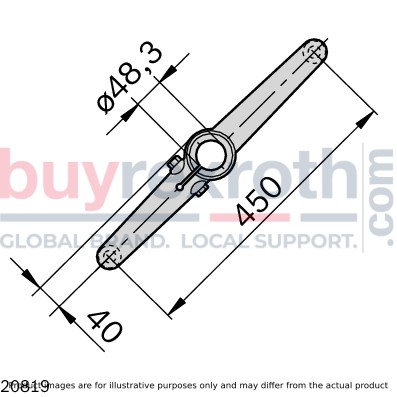

The Bosch Rexroth FOOT BIPOD (3842533308) is a robust and versatile component designed to support chain conveyors and other structures by providing stable footing. Constructed from durable materials, this two-leg foot STS system is compatible with stainless steel tube D48.3 and can be quickly assembled through a clamping mechanism that secures the tube in place. The spindle thread of M16 ensures a secure fit for the supports, which can also be used with aluminum sections for added versatility.
This particular model boasts several features that facilitate ease of use and maintenance. For instance, it allows for simple leg set adjustments due to its clever design details, ensuring that the setup process is quick and straightforward. The FOOT BIPOD also includes drilling aids on the underside, which are particularly useful for accurately doweling the leveling feet into place.

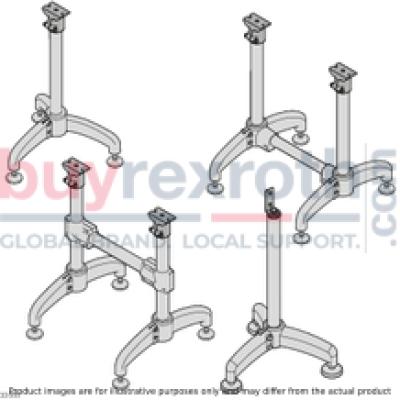

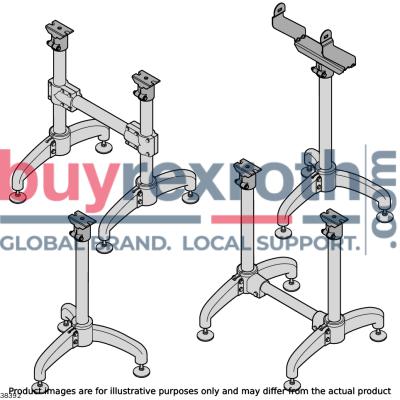

Designed with cleanliness in mind, the FOOT BIPOD has draining surfaces that make it easy to clean—a crucial aspect for maintaining hygiene standards in various applications. The product comes in three different versions (A, B, C) allowing customization based on specific requirements such as speed, accumulation behavior, and weight of the supported structure.
To ensure optimal stability and safety, cross reinforcements are recommended when using feet versions B and C. Additionally, holder (G) is designed to attach directly to strut profiles 60x60 and can accommodate various conveyor section angles up to 28 degrees. Holder (H) is exclusively intended for use with the STS system.
In summary, the Bosch FOOT BIPOD (3842533308) offers a practical solution for constructing sturdy feet and frames within conveyor systems or similar structures. Its easy-to-adjust design coupled with features aimed at simplifying installation make it an efficient choice for supporting machinery drives while ensuring stability and cleanliness are maintained.
$60.53 USD
Availability: 31 In Stock
Available for immediate shipmentQty: Delivered as early as November 26, 2024 when ordered in
