DRILLING AND BORING JIG N10-D9,8/17-P40+50

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

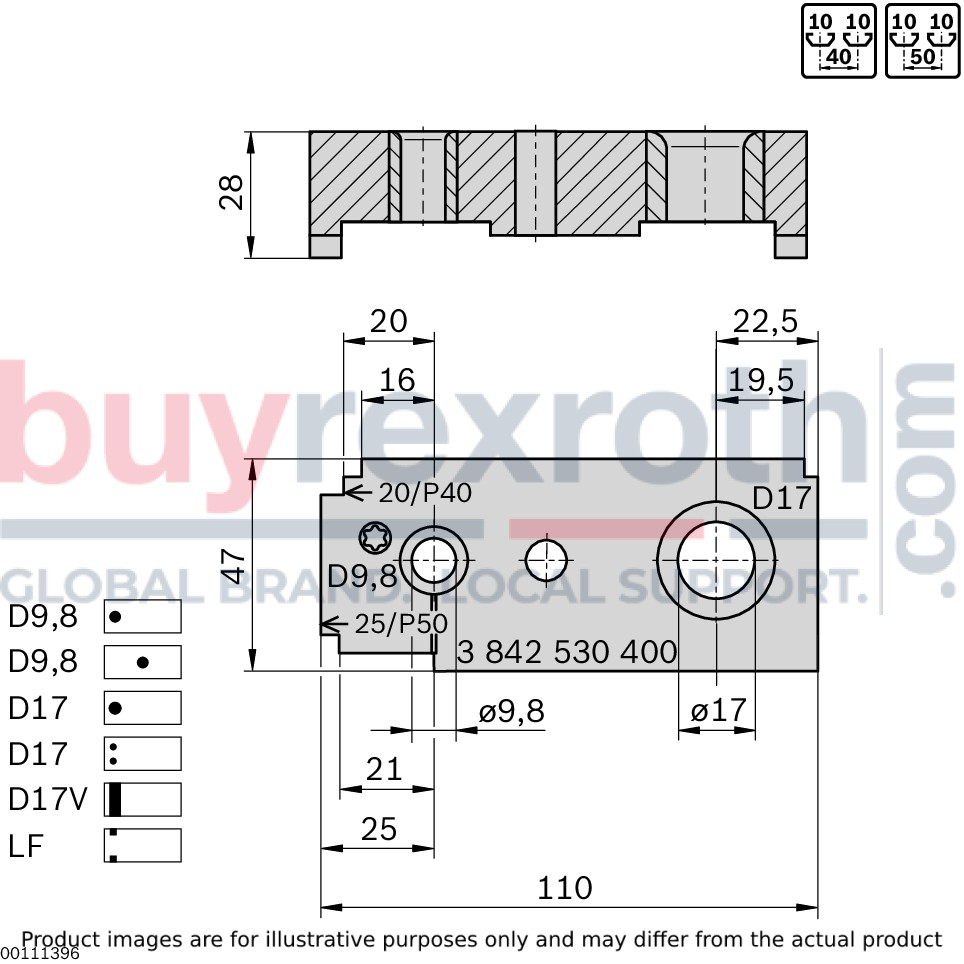

The Bosch Rexroth DRILL JIG N10-D98/17-P40+50 (3842530400) is a precision-engineered drilling jig designed to facilitate accurate and efficient drilling for a variety of applications. This tool is specifically tailored for creating through-holes with a diameter of 9.8mm, compatible with hexagonal-star socket screwdrivers T50, and for fastening holes with a diameter of 17mm suitable for bolt connectors, quick connectors, and threaded sleeves. The jig is optimized for use with groove 10 profiles and can accommodate groove spacings of both 40mm and 50/51mm, providing versatility in its application across different projects. The Torx 50 specification indicates its compatibility with the common Torx drive system, which is known for its ability to transfer high torque while reducing cam-out during the screwing process. Crafted with precision in mind, the Bosch DRILL JIG N10-D98/17-P40+50 ensures that each hole is drilled at the correct location, depth, and angle, thereby increasing the accuracy and quality of the final assembly. It is an essential tool for professionals who require reliable and precise drilling capabilities in their work. Whether used in construction or manufacturing settings, this drilling jig aids in achieving consistent results while saving time and reducing errors that can occur with manual measurements. Overall, this Bosch drilling jig stands out as a dependable accessory designed to meet high standards of accuracy and efficiency in fastening applications. Its robust construction ensures longevity and performance consistency even under rigorous use conditions.
