DRILLING AND BORING JIG N10 D9,8 D17 D21

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

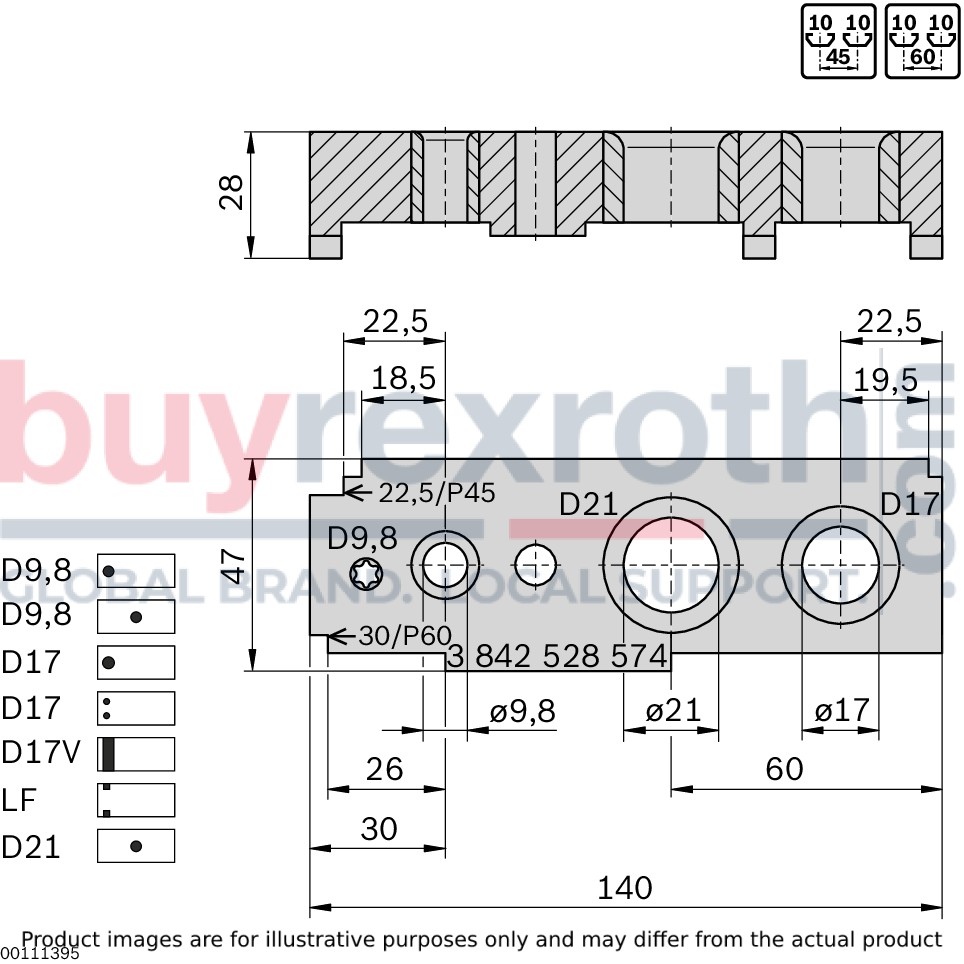

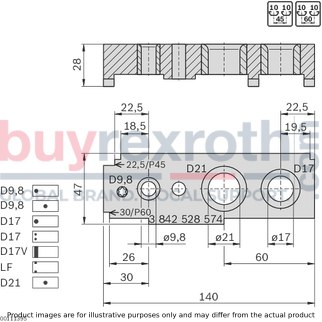

The Bosch Rexroth DRILL JIG (3842528574) is a precision-engineered tool designed to facilitate accurate drilling for a variety of applications. This drilling jig is specifically tailored for use with Torx 50 screwdrivers and is compatible with groove 10 systems, featuring groove spacings of both 45 and 60/61 mm. It is an indispensable tool for creating fastening holes with a diameter of 17 mm, which are ideal for securing bolt connectors, quick connectors, and threaded sleeves. Furthermore, the DRILL JIG N10 D98 D17 D21 includes provisions for through-holes measuring 9.8 mm in diameter, suitable for hexagonal-star socket screwdrivers sized T50. This feature ensures that users can achieve precise alignments and secure fittings when working with such tools. Additionally, the jig allows for the creation of counterbores with a diameter of 21 mm, which are commonly used to accommodate pneumatic connections. Crafted from high-quality materials to ensure durability and reliability, this Bosch drilling jig is designed to deliver consistent performance and accuracy across various applications. Whether it's in professional workshops or on-site installations, the DRILL JIG N10 D98 D17 D21 provides users with a means to execute their work with precision and efficiency. Its specialized design simplifies the process of drilling holes at specific intervals and diameters, making it an essential component in any toolkit where exact hole placement is crucial.
