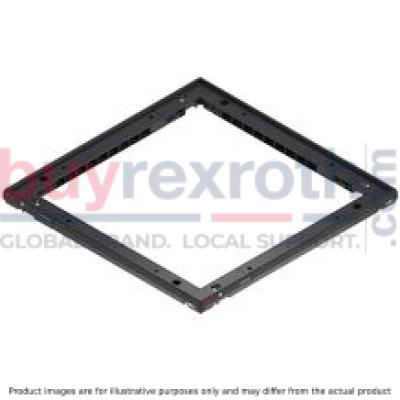

FRAME MODULE EXTENSION 320

Manufacturer: Bosch Rexroth

Material #: 3842513458

Model : FRAME MODULE EXTEN 320

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth FRAME MODULE EXTEN 320 (3842513458) is a robust component designed for constructing workpiece pallets used in various conveyor systems. This standard frame module serves as an extension module and is part of a modular system that can be tailored to specific needs. It is particularly suitable for applications requiring a frame extension with standard side lengths ranging from 160 to 400 mm, with this module providing a 320 mm frame extension. Constructed from high-quality materials, the FRAME MODULE EXTEN 320 comes with either polyamide (PA) or polyethylene (PE) wear pads. The choice between PA and PE wear pads depends on the intended use; the PA wear pad version is optimized for belt/toothed belt and flat top chain conveyor media, making it ideal for general conveying purposes. For heavier duty applications, especially where overall weights exceed 50 kg and conveying speeds surpass 12 M/min, reinforced frame modules are recommended to ensure stability and durability. On the other hand, the PE wear pad variant is necessary when deploying duplex chain and accumulation roller chain conveyor media. However, it's important to note that the PE pad isn't suitable for accumulation operations on ESD flat top chains. This distinction ensures that users select the right module based on their specific conveyor environment and operational requirements. Furthermore, these frame modules are designed to be compatible with WT 2 carrying plates, allowing for versatile configurations in assembly line setups or material handling systems. The Bosch Rexroth FRAME MODULE EXTEN 320 thus offers a flexible solution for extending frames within complex conveyor systems while maintaining high performance and reliability in industrial environments.

$26.96 USD

Availability: 1,182 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 26, 2024 when ordered in

FRAME MODULE EXTENSION 320

Standard frame module, extension module (PA)

Unpacked Weight: 0.155 kg

Material:
- Corner/extension module (PA) with PA (= polyamide) wear pad or
- Corner/extension module (PA) with PE (= polyethylene) wear pad For overall weights mW > 50 kg and for conveying speeds vN >12 M/min, reinforced frame modules are required Can be combined with WT 2 carrying plates

Frame modules are used for self-assembly of workpiece pallets. The PA basic solution is suitable for use on the belt/toothed belt and flat top chain conveyor media.

Frame modules with PE wear pads are required for use on the duplex chain and accumulation roller chain conveyor media. The PE pad is not suitable for accumulation operation on ESD flat top chains.

Corner modules with standard side lengths of 160 to 400 mm
320 mm frame extension module
Material: - Corner/extension module (PA) with PA (= polyamide) wear pad or - Corner/extension module (PA) with PE (= polyethylene) wear pad: Material: - Corner/extension module (PA) with PA (= polyamide) wear pad or - Corner/extension module (PA) with PE (= polyethylene) wear pad
For overall weights mW > 50 kg and for conveying speeds vN >12 M/min, reinforced frame modules are required: For overall weights m_W > 50 kg and for conveying speeds v_N >12 M/min, reinforced frame modules are required
Can be combined with WT 2 carrying plates

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Workpiece pallet total weight [mG]	50
Length [L]	320
Weight	0.155

Width of workpiece pallet	Length of workpiece pallet	Plate mass	Plate mass	Plate mass	Dimension	Dimension	Dimension	Dimension
bWT	lWT	mPL1)	mPL2)	mPL3)	c	d	e	f
(mm)	(mm)	(kg)	(kg)	(kg)	(mm)	(mm)	(mm)	(mm)
160	160	0,9			45	124	124	45
160	240	1,4			45	204	124	125
240	240	2,1			125	204	204	125
160	320	1,8			45	284	124	205
240	320	2,8			125	284	204	205
320	320	4,3	2,1		205	284	284	205
240	400	4,1	2,0		125	364	204	285
320	400	5,3	3,7		205	364	284	285
400	400	6,6	3,4	5,3	285	364	364	285
320	480	6,4	3,2	5,1	205	444	284	365
400	480	7,0	4,0	6,4	285	444	364	365
480	480	9,3	4,9	7,7	365	444	444	365
400	640	10,4	5,4	8,6	285	604	364	525
480	640	12,3	6,5	10,3	365	604	444	525
640	640	16,3	8,7	13,8	525	604	604	525
400	800			10,8	285	764	364	685
480	800			12,9	365	764	444	685
640	800			17,3	525	764	604	685
800	800			21,7	685	764	764	685
640	1040			22,5	525	1004	604	925
800	1040			28,2	685	1004	764	925
800	1200			36,0	685	1164	764	1085
1040	1040			40,6	925	1004	1004	925
1040	1200			46,9	925	1164	1004	1085
1200	1200			54,1	1085	1164	1164	1085

1)	Steel 4.8 mm
2)	Aluminum 8.0 mm
3)	Aluminum 12.7 mm

WT 2: Frame modules with PE-wear pad – parts list
For workpiece carriers mW > 50 kg or vN > 12 m/min


bWT (mm)	lWT (mm)	38425267602)	3842526761	3842526762	3842526763	3842526764	38425282921)	38425282931)
320	480	2		2				2
400	400						4
400	480	2					2	2
400	640			2			2	2
400	800	2				2	2	2
480	480	4						4
480	640	2		2				4
480	800	4				2		4
640	640			4				4
640	800	2		2		2		4
640	1040			2	2	2		4
800	800	4				4		4
800	1040	2			2	4		4
800	1200	2	2			6		4
1040	1040				4	4		4
1040	1200		2		2	6		4
1200	1200		4			8		4

1)	Reinforced module
2)	With the 160 mm frame module with a PE wear pad (3842526760), no exciter plate is included for sensing with inductive sensors from below. Only lateral position inquiry is possible with this design.

WT 2: Frame modules with PE-wear pad – parts list
For workpiece carriers mW ≤ 50 kg or vN ≤ 12 m/min


bWT (mm)	lWT (mm)	38425267602)	3842526761	3842526762	3842526763	3842526764
160	160	4
160	240	2	2
160	320	2		2
240	240		4
240	320		2	2
240	400		2		2
320	320			4
320	400			2	2
320	480	2		2		2
400	400				4
400	480	2			2	2
400	640			2	2	2
400	800	2			2	4
480	480	4				4
480	640	2		2		4
480	800	4				6
640	640			4		4
640	800	2		2		6
640	1040			2	2	6
800	800	4				8
800	1040	2			2	8
800	1200	2	2			10
1040	1040				4	8
1040	1200		2		2	10
1200	1200		4			12

1)	With the 160 mm frame module with a PE wear pad (3842526760), no exciter plate is included for sensing with inductive sensors from below. Only lateral position inquiry is possible with this design.

WT 2: Frame modules with PA-wear pad – parts list
For workpiece carriers mW > 50 kg or vN > 12 m/min


bWT (mm)	lWT (mm)	3842174301	3842174302	3842174303	3842174304	3842513458	38425259981)	38425259991)
320	480	2		2				2
400	400						4
400	480	2					2	2
400	640			2			2	2
400	800	2				2	2	2
480	480	4						4
480	640	2		2				4
480	800	4				2		4
640	640			4				4
640	800	2		2		2		4
640	1040			2	2	2		4
800	800	4				4		4
800	1040	2			2	4		4
800	1200	2	2			6		4
1040	1040				4	4		4
1040	1200		2		2	6		4
1200	1200		4			8		4

1)	Reinforced module

WT 2: Frame modules with PA-wear pad – parts list
For workpiece carriers mW ≤ 50 kg or vN ≤ 12 m/min


bWT (mm)	lWT (mm)	3842174301	3842174302	3842174303	3842174304	3842513458
160	160	4
160	240	2	2
160	320	2		2
240	240		4
240	320		2	2
240	400		2		2
320	320			4
320	400			2	2
320	480	2		2		2
400	400				4
400	480	2			2	2
400	640			2	2	2
400	800	2			2	4
480	480	4				4
480	640	2		2		4
480	800	4				6
640	640			4		4
640	800	2		2		6
640	1040			2	2	6
800	800	4				8
800	1040	2			2	8
800	1200	2	2			10
1040	1040				4	8
1040	1200		2		2	10
1200	1200		4			12

WT 2 workpiece pallet, completely assembled

No production drawing

1 exciter plate

2 guide groove

3 stop gate aperture

4 top clearance

5 bottom clearance
