PRESSURE COMPENSATOR -Z ZDC6XP-1X/8M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

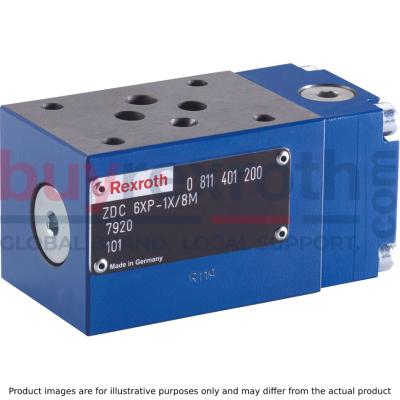

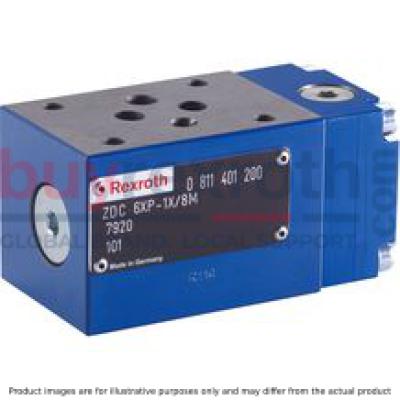

The Bosch Rexroth ZDC6XP-1X/8M (0811401200) is a high-performance industrial hydraulic valve designed for reliable pressure compensation in various applications. This direct-actuated spool valve is part of the ZDC series and operates as a supply pressure compensator in a 2-way version, ensuring precise control over the flow of hydraulic fluid within a system. The valve's capability to maintain a constant pressure differential across the proportional throttle valves and directional valves is essential for consistent operation, regardless of load changes. This stability is achieved through the integration of a throttle valve, which functions as a measuring device, and a pressure compensator that regulates the pressure differential. The compensator spring can be selected to provide differentials ranging from 8 to 25 bar, catering to specific system requirements. Designed with versatility in mind, the ZDC6XP-1X/8M can be used in conjunction with proportional directional valves to create an effect similar to that of an electrical flow control valve. The unit can effectively manage flow control in two directions by adjusting for varying load pressures via an installed shuttle valve. This model also features load compensation capabilities between channels P → A or P → B, further enhancing its utility in complex hydraulic circuits. The sandwich plate design conforms to DIN 24340 form A porting patterns, allowing for straightforward integration into existing systems without extensive modifications. In scenarios where deceleration of mass may result in pulling loads, Bosch has engineered this valve with the foresight that counterholding valves may be necessary to prevent potential issues. Overall, the Bosch ZDC6XP-1X/8M represents a robust solution for sophisticated hydraulic applications requiring precise control and adaptability.
