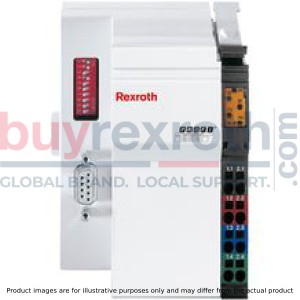

INTERFACE MODULE R-IL PB BK DP/V1-PAC

Manufacturer: Bosch Rexroth

Material #: R911170971

Model : R-IL PB BK DP/V1-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IL PB BK DP/V1-PAC (R911170971) is a sophisticated bus coupler designed to seamlessly integrate the PROFIBUSDP network with the Inline installation system. This device enables users to connect Inline terminals to an existing PROFIBUSDP network, thereby extending the functionality and advantages of the installation system across the PROFIBUSDP. The bus coupler comes complete with necessary accessories, including a connection plug and labeling field, ensuring a straightforward setup process. Its compatibility with Inline terminals makes it a versatile component in various automation applications where reliable communication and integration of different systems are crucial. The R-IL PB BK DP/V1-PAC is engineered to maintain high performance and durability, typical of Bosch Rexroth's commitment to quality in their automation products.

$784.26 USD

Availability: 1 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as April 30, 2024 when ordered in

INTERFACE MODULE R-IL PB BK DP/V1-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.286 kg

The Rexroth PROFIBUS-DP/V1 bus coupler is the connection between the PROFIBUS-DP and the Inline installation system. You can use the PROFIBUS-DP/V1 bus coupler to connect Inline terminals, anywhere, to an existing PROFIBUS-DP. This gives you all the benefits of an installation system, which is built up using these terminals, for use on the PROFIBUS-DP, too.

Data Sheet	Download Data Sheet
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	85
Productgroup ID	4,6
Height	120
International protection code	IP20
Permissible air humidity (storage)	10-95
Communication	PROFIBUS DP
Permissible air humidity (transport)	10-95
Connection type	Zugfederanschluss
Depth	71.5
Weight	0.286
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16

General data

Type		R-IL PB BK DP/V1-PAC
Weight 1)	g	297
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 % acc. to DIN EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 % acc. to DIN EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529

1)	Including plug

Connection data

Type		R-IL PB BK DP/V1-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16
Permissible cable length	m	≤ 30

Interface fieldbus

Type		R-IL PB BK DP/V1-PAC
Connectivity technology		Tension spring modules
Transfer physics		Copper line (RS-485), connected via D-SUB shielded plug; supply electrically isolated; shielding connected directly with the function earth. - - -

System boundaries

Type		R-IL PB BK DP/V1-PAC
Number of process data		Max. 184 bytes in IL PB BK mode; max. 176 bytes in IL PB BK DP/V1 mode
Number of supported participants per station		≤ 63

24 V main power supply UM (Main, bus coupler, logic and interface supply)

Type		R-IL PB BK DP/V1-PAC
Connectivity technology		Tension spring modules
Continuation		Potential jumpers
Rated value	V DC	24
Tolerance		-15 %/+20 % acc. to EN 61131-2
Ripple	%	± 5
Supply voltage range		19.2 V ... 30 V (including ripple)

24 V segment supply US

Type		R-IL PB BK DP/V1-PAC
Connectivity technology		Tension spring modules
Continuation		Potential jumpers
Rated value	V DC	24
Tolerance		-15 %/+20 % acc. to EN 61131-2
Ripple	%	± 5
Supply voltage range		19.2 V ... 30 V (including ripple)
Current-carrying capacity	A	≤ 8

Inline potentials/performance balance

Type		R-IL PB BK DP/V1-PAC
Power supply to UL	A	≤ 2
Typical current consumption from UL 1)	A	0.1
Maximum current consumption from UL 2)	A	1.25
Power supply to UANA	A	≤ 0.5

1)	At no load, i.e. incoming PROFIBUS attached, no Inline participants connected up
2)	Comprising:0.75 A for logic supply0.5 A for analog voltage supply

Conformity

Type		R-IL PB BK DP/V1-PAC
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion A; all interfaces 1 kV; criterion B; all interfaces 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±1 kV (symmetric/asymmetric); fieldbus cable shielding: ±1 kV acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-4	Testing of line-fed disturbance transmission	Class A acc. to EN 55011

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IL PB BK DP/V1-PAC
A	mm	85
B	mm	120
C	mm	71.5
