CHECK VALVE SANDWICH PLATE Z1S10P05-1-4X/F

Manufacturer: Bosch Rexroth

Material #: R901274759

Model : Z1S10P05-1-4X/F

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z1S10P05-1-4X/F (R901274759) is a high-performance industrial hydraulic valve designed for reliable blocking of oil flow at selected ports. This seat valve is direct actuated with a spool symbol P P and a cracking pressure of . bar. It boasts a maximum pressure capacity and features an electrical connection that adheres to product group specifications. With its mechanical actuation type, this valve has a size rating and supports a max flow rate. The Z1S10P05-1-4X/F offers various types of connections, including interim assembly, with connection diagrams that comply with NFPA T.. R D SizeCETOP D and ISO standards. This model is equipped with FKM seals and is compatible with a wide range of hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. It features multiple ports for versatile applications and can be used in different switching positions. The weight of the valve ensures stability in operation. As a sandwich plate valve suitable for vertical stackings, the Z1S10P05-1-4X/F offers porting patterns according to ISO standards. Its design includes one-and two-channel blocking functions for optimal efficiency. The poppet made from high-performance plastic guarantees perfect leaktightness even at low pressures. This corrosion-protected design allows for easy adjustments to special hydraulic fluids by exchanging external seal rings. Furthermore, the Z1S10P05-1-4X/F valve facilitates cost-effective maintenance through individually available check valve installation sets. Optional features include measuring ports and throttle check valves if required by specific applications. With its robust construction and flexible capabilities, this Bosch Rexroth hydraulic valve stands out as an essential component in industrial fluid control systems.

$625.00 USD

Availability: 33 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 20, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

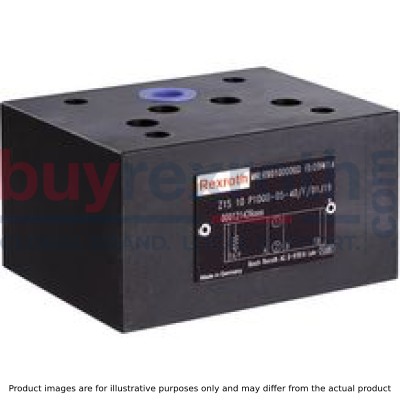

CHECK VALVE SANDWICH PLATE Z1S10P05-1-4X/F

Size 10, P2 → P1, mechanically actuated

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Unpacked Weight: 2.240 kg

Sandwich plate valve for use in vertical stackings Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 Various one and two-channel blocking functions Perfect leak-tightness due to poppet made of high-performance plastic Corrosion-protected design Easily adjustable to special hydraulic fluids by exchanging the external seal rings Cost-effective replacement of wear parts thanks to individually available check valve installation sets With measuring ports, optional Throttle check valve, optional

The valve type Z1S is a direct operated check valve in sandwich plate design.

It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.

The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).

Notice:

For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.

The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.

Type Z1S 10 P.-1.TB.-2-4X/…

①	component side
②	plate side

Seat valve
Direct actuated
Cracking pressure 0.5 bar
Size 10
Maximum flow 100 l/min
Component series 4X
Maximum operating pressure 350 bar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	P2 → P1
Max. pressure	350
Electrical connection description	0
Productgroup ID	9,10,11,12,13,14
Number of ports	4
Type of actuation	with mechanical actuation
Size	10
Max. flow	100
Type of connection	Interim assembly
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D05
Size_CETOP	D05
Connection diagram	ISO 4401-05-04-0-05
Number of switching positions	2
Weight	2.240
Seals	FKM
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR

01	02	03	04		05	06	07	08	09	10	11		12		13		14	15	16	17		18	19
Z1S	10			–								–	4X	/	F	/					–		*

01	Check valve, Sandwich plate design	Z1S
02	Size 10	10
Check valve 1 1) – in channel …
03	Channel A	A
	Channel B	B
	Channel P	P
	Channel T	TA
	Channel TB	TB
Check valve 1 1) – cracking pressure
04	Without spring	00
	0,5 bar	05
	3,0 bar	30
	5,0 bar	50
Check valve 1 1) – installation direction
05	component side ➀ (direction of flow ➁ → ➀)	1
05	Plate side ➁ (direction of flow ➀ → ➁)	2
Check valve 1 1) – nozzle diameter (when used as throttle check valve)
06	Without throttle	no code
	Ø0,5 mm	D05
	Ø1,0 mm	D10
	Ø1,5 mm	D15
Check valve 2 (optional) 1) – in channel …
07	Without check valve 2	no code
	Channel B	B
	Channel P	P
	Channel T	TA
	Channel TB	TB
Check valve 2 (optional) 1) – cracking pressure
08	Without check valve 2	no code
	Without spring	00
	0,5 bar	05
	3,0 bar	30
	5,0 bar	50
Check valve 2 (optional) 1) – installation direction
09	Without check valve 2	no code
	component side ➀ (direction of flow ➁ → ➀)	1
	Plate side ➁ (direction of flow ➀ → ➁)	2
Check valve 2 (optional) 1) – nozzle diameter (when used as throttle check valve)
10	Without throttle	no code
	Ø0,5 mm	D05
	Ø1,0 mm	D10
	Ø1,5 mm	D15
11	Channels TA and TB free-flowing	no code
	Channel TA closed	TA9
	Channel TB closed	TB9
12	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Seal material
13	FKM seals	F
13	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Additional pilot oil ports X and Y
14	Without X and Y	no code
14	With X and Y	XY
Measuring port G1/4
15	Without measuring port	no code
	In channel A	MA
	In channel B	MB
	In channel P	MP
	In channel TA	MTA
16	Without measuring port	no code
	Measuring port input	A
	Measuring port output	B
Corrosion resistance (outside; thick film passivated according to DIN 50979 Fe//Zn8//Cn//T0)
17	None (valve housing primed)	no code
17	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Special version 1)
18	Measuring port in P (G1/2)	068
18	With tank bracket	120
19	Further details in the plain text	*

1)	Symbols; for the possible version, see "Symbols/Circuit diagrams"

general

Size		10
Weight	kg	2.3
Installation position		any
Ambient temperature range	°C	-20 … +80

For applications outside these parameters, please consult us!

hydraulic

Size		10
Maximum operating pressure	bar	350
Cracking pressure	bar	0.5 / 3 / 5
Maximum flow	l/min	100
Hydraulic fluid		see table
Hydraulic fluid temperature range 1)	°C	-20 … +80
Viscosity range	mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2)		Class 20/18/15

1)	At the valve working ports
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG	NBR, FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU	FKM	ISO 12922	90222
		HFDR	FKM
	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant - containing water: Maximum pressure differential per control edge 50 bar Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 … 100%. Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

(measured with HLP46, ϑOil = 40 ±5 °C)

Δp-qV characteristic curves

①	component side
②	plate side

Version "A.-1"

(check valve in channel A)

Version "B.-2"

(Check valve in channel B)

Version "A.-2B"

(Check valve in channel A and B)

Version "TA.-2-TB9"

(Check valve in channel TA, TB closed)

Version "TA.-2D10"

(Check valve in channel A with orifice Ø1.0 mm)

Version "P.-1TA-2TB9"

(Check valve in channel TA and P, TB closed)

Version "TA.-2TB"

(Check valve in channel TA and TB)

Version "P.-1-.F/XY"

(Check valve in channel P, additionally channels X and Y)

Version "P.-1-4X/F/.MPB"

(check valve in channel P, measuring port P Out G1/4)

Version "TB.-2-TA9"

(Check valve in channel TB, TA closed)

Special versions

Version "P.-1…-068"

(Check valve in channel P, measuring port P (G1/2)

Version "TA.-2-TB9…-120"

(Check valve in channel TA, with tank bracket)

Dimensions in mm

1)	on request (depending on order option)


Required surface quality of the valve contact surface

①	component side
②	plate side

1	Name plate
2	Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side)
3	Plastic socket (position and number dependent on order option)
4	Valve mounting bores
5	Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05
6	Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 %
7	Dimension of version "120"

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
10	4	ISO 4762 - M6 10.9	-

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

Check valve installation set: Disassembly and assembly

Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).

Disassembly:

Push out the check valve installation set.

Assembly:

Insert the check valve installation set and push in the plastic socket (2).

With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.

Notice:

Once removed, plastic sockets may no not be used again.

Valve housing (steel) and plastic spool with plastic socket can be disassembled into individual components for proper disposal. Deviating from ISO 4401, port T is referred to with TA and port T1 is referred to with TB in this data sheet. The check valve installation set is available separately (plastic socket, plastic spool, spring): E-Mail: spare.parts@boschrexroth.de The plastic socket has a sealing function and may therefore not be damaged. For assembly and disassembly of the check valve installation set, a special multi-purpose tool is required, see "Assembly".

Troubleshooting

External leakage at the flow passages	Seal ring faulty.	Replace seal rings (seal kit).
	Lip of the plastic socket is damaged.	Replace check valve installation set. 1)
	Mounting screws tightened unevenly.	Loosen screws and tighten them again crosswise using the recommended tightening torque.
Internal leakage at the check valve installation set	Foreign particle on poppet surface.	Check poppet surface from the outside for foreign particles and remove them.
	Poppet does not move freely.	Check free movement of the poppet from the outside using an appropriate mandrel. Do not push the plastic socket out of the housing!
	Leakage caused by downstream assembly.	Check if the check valve installation set is the reason for the leakage.
	Hydraulic fluid quality does not correspond to the specification.	Check hydraulic fluid quality and adjust it to the specifications, if required.
	Dependent on the included hydraulic fluid volume and its temperature variations, there may be pressure changes which are not due to leakage.
	If the measures described above are not successful.	Completely replace the check valve installation set. 1)
External leakage at measuring points	Seal faulty.	Replace profile seal.
External leakage at measuring points	Plug screw or fitting not tightened correctly.	Tighten plug screw or fitting using the specified tightening torque.

1)	Use the special multi-purpose tool to avoid damaging the plastic socket, see "Mounting".
