MAGNETIC FIELD SENSOR HALL PNP-NC H 10706 ...

Manufacturer: Bosch Rexroth

Material #: R347602403

Model : MAGNET.FIELD SENOR HALL PNP-NC H 10706 &

Destination

$157.37 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as September 16, 2026

MAGNETIC FIELD SENSOR HALL PNP-NC H 10706 ...

Unpacked Weight: 0.0113 kg

Electrical accessories for linear axes	Magnetic sensors
Permissible ambient temperature	-40 °C ... +85 °C
Cable diameter D tolerance	±0.2
Cable diameter D	3.2
Bending cycles footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Connection type	0.3 m cable and M8x1 connector, 3-pin with knurled screw connection
Compatible	CKK, CKR, VKK, MKK/MKR-040
Cable cross-section	3x0,14
Static bending radius	‒
Dynamic bending radius	‒
Torsion-resistant footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

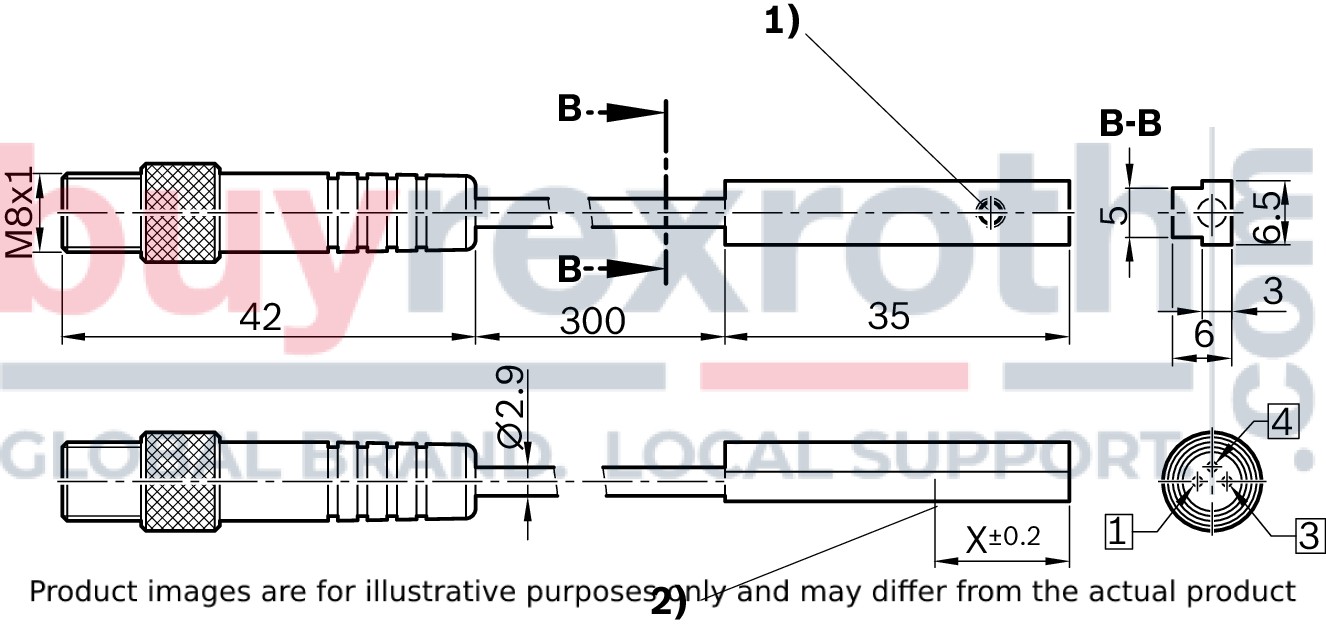

Activation point (dimension x)	13.65
Torsion-resistant	‒
Operating voltage	3,8 ... 30
Weld spark-resistant footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Weld spark-resistant	‒
Short-circuit protection	‒
Suitable for drag chains	nein
Suitable for drag chains footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Load current	≤20
Switching function version	Hall, PNP/NC
Productgroup ID	17
MTTFd (per EN ISO 13849-1 )	‒
Permissible ambient temperature (max)	+85
Bending cycles	‒
Dynamic bending radius footnote	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Permissible ambient temperature (min)	-40
Switching frequency	2.5
Protection class	IP66
Max. permissible approach speed	2
Reverse polarity protection	‒
Footnote cable cross-section	Technical data only for the cast-on connection cable (0.3 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
Switch-on suppression	no
Functional principle	magnetic
Use	Reference / limit switch
Pulse extension	‒
Function indicator	no
Weight	0.0113

Technische Daten

Part number		R347602403	R347602303
Functional principle		Magnetic
Operating voltage	V DC	3,8 ... 30	30
Load current	mA	≤ 20	500
Switching function		Hall PNP/normally closed (NC)	REED / single-pole changeover, (NC: C+NC, NO: C+NO)
Connection type		Line 0.3 m and plug M8x1 3-pin with knurled screws
Function indication		‒
Short-circuit protection		‒
Reverse polarity protection		‒
Switch-on suppression		‒
Switching frequency	kHz	2.5
Pulse delay (Off delay)		‒
Maximum permissible starting speed	m/s	2
Suitable for flexing installation 1)		‒
Can withstand torsion 1)		‒
Weld spark resistant 1)		‒
Cable cross-section 1)	mm2	3x0,14
Cable diameter D 2)		3.2 mm ±0.2
Bending radius, stationary 1)		‒
Bending radius, flexing 1)		‒
Bending cycles 1)		‒
Maximum permissible travel speed 1)		‒
Maximum permissible acceleration 1)		‒
Permissible ambient temperature (min ... max)		-40 °C ... +85 °C
Protection type		IP66
MTTFd (as per EN ISO 13849-1 )		‒
Certifications and approvals		‒

1)	Technical data only for the cast-on connection line (0.3 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.
2)	Technical data only for the cast-on connection line (0,3 m) at the magnetic sensor. Even more performance, e.g. extension cables are offered for use in a cable management chain.
