BALL RUNNER BLOCK CARBON STEEL KWD-035-SLS-C3-X-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

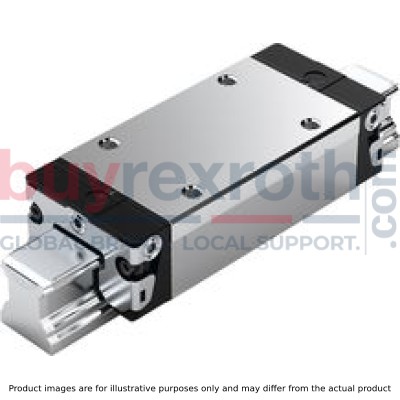

The Bosch Rexroth B.RUNNER BLOCK CS KWD-035-SLS-C3-X-1 (R162333820) is a ball runner block designed for high precision and heavy load applications. This product features a slimline width, long length, and standard height format (SLS), constructed from unalloyed steel CS, ensuring robustness and durability. With a high preload class C and extra precision accuracy class XP, it is engineered to deliver exceptional performance in applications requiring extreme precision. The runner block does not include a ball chain but comes with initial lubrication and preservation using Roller bearing grease Dynalub. This model boasts an optimized entry-zone geometry with a high number of balls, which reduces the variation in elastic deflection, enhancing its torque load capacity. It also features integrated all-around sealing to protect against contaminants while allowing for minimum quantity lubrication with an integrated reservoir for oil lubrication. Attachments can be mounted from above due to the end-face fastening thread provided on the runner block. The B.RUNNER BLOCK CS can be utilized on all SN/SNO ball guide rails, offering excellent dynamic characteristics that cater to various preload classes. Its design facilitates interchangeability across different accuracy classes within Bosch Rexroth's ball guide rail systems. Moreover, it is self-aligning to compensate for misalignments and does not require a ball chain as standard. It's important to note that this product has been designed to withstand ambient temperatures ranging from -10°C up to +100°C for short periods. The dynamic load capacity C and static longitudinal moment load capacity ML are determined based on a 100 km travel as per DIN ISO standards. For applications where effective sealing is required, this model comes equipped with standard universal seals (SS), with options for low-friction seal (LS), double-lip seal (DS), front seal, FKM seal, and cover plate wiper as accessories that can be mounted by the customer during servicing or replacement. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWD-035-SLS-C3-X-1 offers high precision movement suitable for restricted space applications where high loads are anticipated in all four main loading directions. It provides long-term lubrication capabilities over several years along with limitless interchangeability within each accuracy class of Bosch Rexroth's profiled rail systems.
