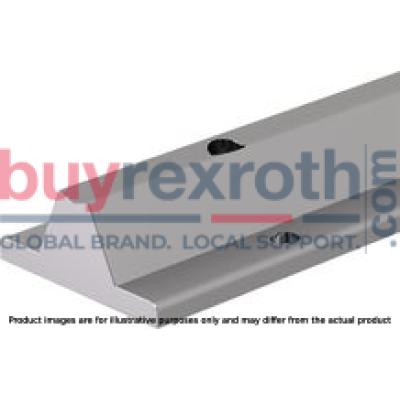

SHAFT SUPPORT RAIL WU50-AFH1-600
Manufacturer: Bosch Rexroth
Material #: R105015000
Model : SHAFT SUPPORT RAIL WU50-AFH1-600
$237.76 USD
More are expected on August 25, 2027
Status: This product is temporarily out of stock.
Qty: Delivered as early as August 25, 2027 when ordered in
Dimensions
|
Ød |
mm |
12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
A |
mm |
43 | 48 | 56 | 60 | 74 | 78 | 90 |
|
E |
mm |
29 | 33 | 37 | 42 | 51 | 55 | 63 |
|
H 1) |
28 mm ±0.05 | 30 mm ±0.05 | 38 mm ±0.05 | 42 mm ±0.05 | 53 mm ±0.05 | 60 mm ±0.05 | 75 mm ±0.05 | |
|
M |
mm |
5.8 | 7 | 8.3 | 10.8 | 11 | 15 | 19 |
|
M1 |
mm |
9 | 10 | 11 | 14 | 18 | 22 | |
|
O1 2) |
M4x25 | M5x25 | M6x30 | M8x35 | M10x40 | M10x45 | M12x55 | |
|
O2 3) |
M4x12 | M5x16 | M6x16 | M8x25 | M10x30 | |||
|
T 4) |
mm |
75 | 100 | 120 | 150 | 200 | ||
|
t |
mm |
5.5 | 7 | 9.6 | 11 | 14 | 13.5 | 16 |
|
U1 5) |
mm |
4 | 5 | 6 | 8 | 10 | 12 | |
|
U2 6) |
mm |
4 | 5 | 6 | 8 | 10 | ||
|
V |
mm |
5 | 6 | 8 | 10 | |||
| 1) | Measured with gauging shaft, nominal dimension d and length about 50 mm. |
| 2) | ISO 4762-8.8 |
| 3) | ISO 4762-8.8 oder ISO 4017-8.8, only applicable for bolting with steel or cast iron threads. |
| 4) | For transverse loads on the Linear Bushing opening and when approaching maximum load, as well as when dimensional accuracy is strictly required. |
| 5) | DIN 7980, discontinued. Spring washer commercially available. |
| 6) | DIN 125 |
