CURVE 160+ HOR STS 30°R500

Manufacturer: Bosch Rexroth

Material #: 3842547123

Model : CURVE 160+ HOR STS 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CURVE 160+ HOR STS 30?R500 (3842547123) is a state-of-the-art roller curve component designed for seamless integration into conveyor systems. This horizontal roller curve facilitates low-friction, quiet changes in chain direction, enhancing the efficiency and longevity of the conveyor system. It boasts patented roller elements that are easy to clean, making it suitable for environments where hygiene is paramount. The CURVE 160+ HOR STS is built with high-quality materials, including non-rusting steel ball bearings with seals on both sides and FDA-compliant grease filling, ensuring durability and compliance with stringent food safety regulations. The surfaces that come into contact with the chain are also made from FDA-compliant materials, further emphasizing its suitability for food-related applications. This product features a deflection angle that allows for smooth directional changes without compromising the stability or speed of the conveyed items. The effective sliding rail length and actual chain length can be customized to meet specific conveyor system requirements. Additionally, this model comes fully assembled, including fastening materials for mounting to the STS section profile. For those requiring unique specifications, Bosch Rexroth offers additional versions through their modification department. The CURVE 160+ HOR STS's design reduces wear on the conveyor chain and lowers overall system costs by enabling longer conveyor sections between supports due to its robust construction and use of high-grade materials. This product is particularly well-suited for applications where cleanliness, reliability, and efficiency are critical.

$1,148.41 USD

More are expected on December 30, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 30, 2024 when ordered in

CURVE 160+ HOR STS 30°R500

Roller curve horizontal STS VFplus 160 30°

Unpacked Weight: 3.3 kg

Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Surfaces in contact with chain made of FDA-compliant materials

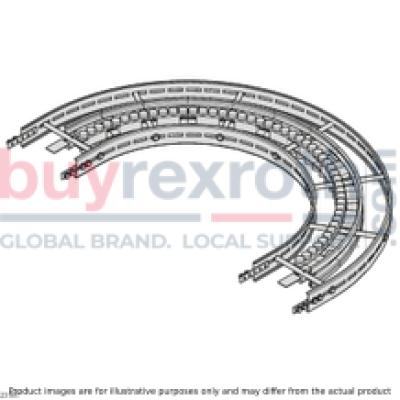

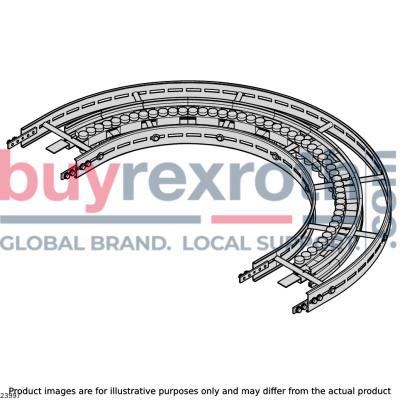

The low-friction roller curve is used for the horizontal change in direction of the chain. Plastic-coated roller elements with ball bearings enable longer conveyor sections. The service life of the chain is increased and system costs are reduced.

Size: 160, 240, 320 Deflection angles Deflection radius: R500 Suitable chain types: all Version with open section profiles

Patented roller elements for low-friction, quieter changes in chain direction
Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	30
Productgroup ID	2
Effective sliding rail length	5x 0,46
Actual chain length	2x 0,46
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.3
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Required accessories	Slide rail: Length calculation
Size [b]	160

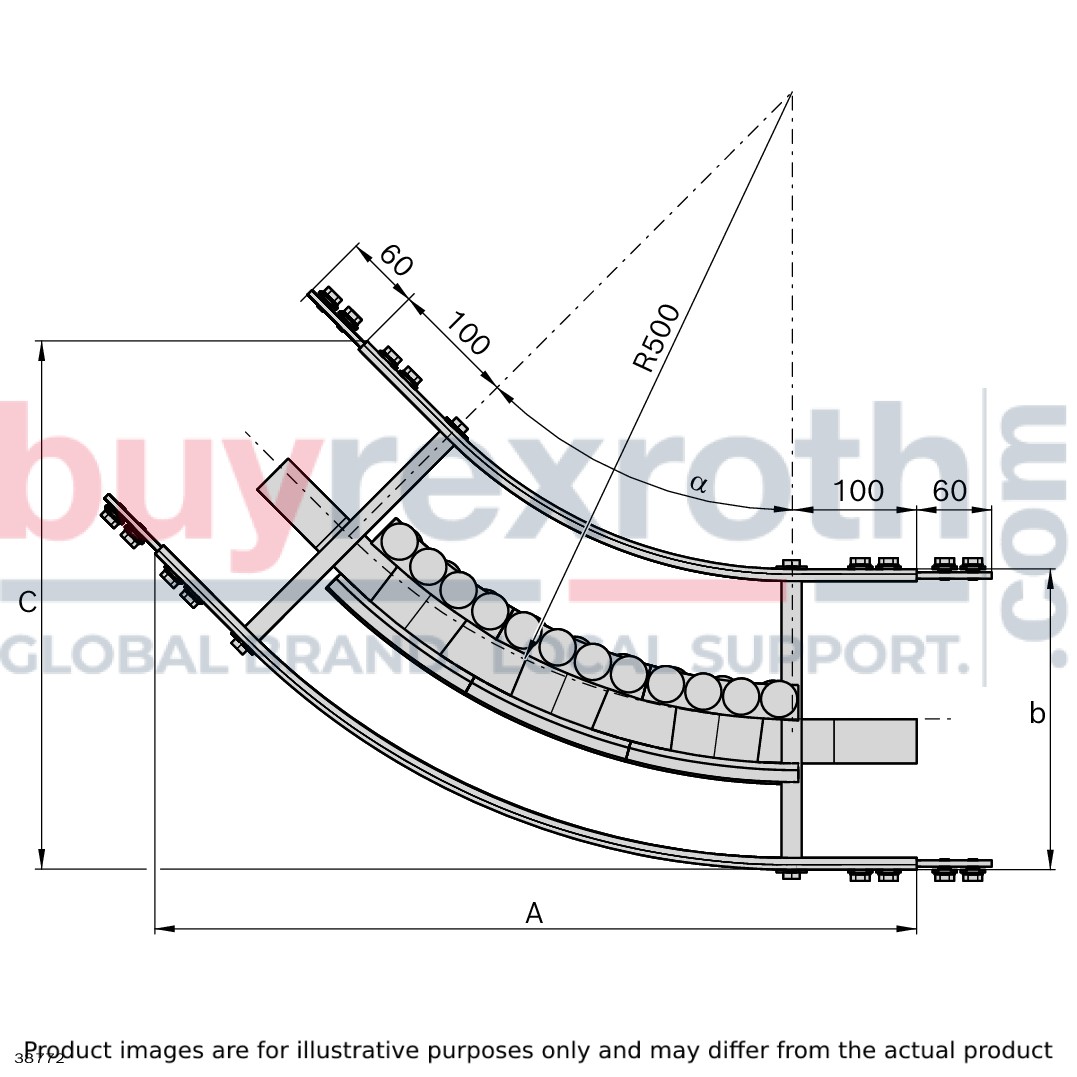

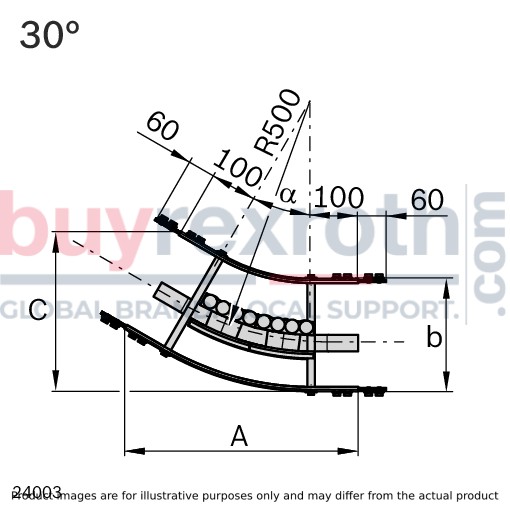

Dimension [A]	476.6
Material information	Profile: Non-rusting steel 1.4301,Roller carrier: PA 66,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Non-rusting steel 1.4301,Rollers: PA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)
