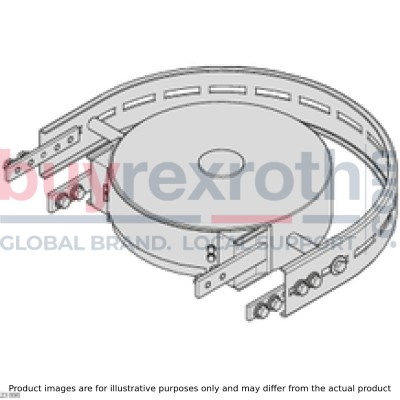

CAM WHEEL 65+ STS 45°

Manufacturer: Bosch Rexroth

Material #: 3842547112

Model : CAM WHEEL 65+ STS 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547112) is a high-quality curve wheel designed for use in conveyor systems. This CAM WHEEL model facilitates smooth and efficient changes in direction for conveyor chains both horizontally and vertically, making it suitable for wedge conveyors. It boasts an easy-to-clean design with ball bearings made of non-rusting steel, complete with seals on both sides and FDA-compliant grease filling, ensuring durability and compliance with food safety regulations. The surfaces that come into contact with the chain are constructed from FDA-compliant materials, minimizing the risk of contamination. The design also avoids any interfering contours above the chain plate height, allowing for uninterrupted operation. The deflection angle is tailored to specific applications, with additional versions available upon request through Bosch Rexroth's modification department. This CAM WHEEL is fully assembled upon delivery and includes all necessary fastening materials for mounting to STS section profiles. The housing is made from non-rusting steel, while the chain wheel itself is crafted from white PA (polyamide), ensuring a robust construction that can withstand rigorous use. The ball bearings are also made from non-rusting steel that meets FDA standards. With its compact size dimensions (size b), this curve wheel is versatile enough to accommodate various deflection angles as detailed in the accompanying table. It's compatible with all suitable chain types and has been designed to enable low-friction direction changes even at very small radii, enhancing the performance of conveyor systems in a range of settings without compromising on hygiene or quality.

$750.88 USD

Availability: 2 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as May 7, 2024 when ordered in

CAM WHEEL 65+ STS 45°

Curve wheel STS VFplus 65 45°

Unpacked Weight: 4.3 kg

Surfaces in contact with chain made of FDA-compliant materials No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 For deflection angles, see table Other deflection angles on request Suitable chain types: all

Easy-to-clean design
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant materials
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	45
Productgroup ID	2
Effective sliding rail length	2x 0,38
Actual chain length	2x 0,32
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	4.3
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

Combination matrix

		Straight			Curves			Drives			Return Unit
		Section profile STS open	Section profile STS Clean	Assembly module	Curve wheel	Roller curve*	Vertical curve	Head drive	Connection drive	Center drive**	Basic unit	90° **
Straight	Section profile STS open	J
	Section profile STS Clean	L6)	L6)
	Assembly module	J	L6)	N
Curves	Curve wheel	J	L6)	J	L2, 7)
	Roller curve*	J	N	J	N	L1)
	Vertical curve	J	L6)	J	L1)	L1)	L1)
Drives	Head drive	J	L6)	J	L1)	L1, 4)	L1, 4)	N
	Connection drive	J	L6)	J	L1)	N	L1)	N	N
	Center drive**	J	L6)	J	L1)	N	L1)	N	N	N
Return Unit	Basic unit	J	L6)	J	L1)	L1, 4)	L1, 4)	L1)	L1)	L1, 3)	L1, 3)
Return Unit	90° **	J	L6)	J	L1)	N	L1)	L1)	L1)	N	N	L1)
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 224 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
6)	Replace the standard profile connector with STS Clean Section profile connector
7)	Directly possible with left-right change (one profile connector is no longer required)

Curve wheel STS

Curve wheel STS VFplus 30°

Curve wheel STS VFplus 45°

Curve wheel AL VFplus 90°

Curve wheel STS VFplus 180°

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	322.5	279.4	153
	45	185.5	322.5	301.9	153
	90	185.5	322.5	285.5	153
	180	185.5		287.5	153
90	30	210.5	347.5	291.9	165.5
	45	210.5	347.5	319.6	165.5
	90	210.5	347.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	377.5	306.9	180.5
	45	240.5	377.5	340.8	180.5
	90	240.5	377.5	340.5	180.5
	180	240.5		340.5	180.5

Note: High-pressure cleaning of the ball bearings is not permitted.
