CAM WHEEL 65+ AL 90°

Manufacturer: Bosch Rexroth

Material #: 3842547050

Model : CAM WHEEL 65+ AL 90

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CAM WHEEL (3842547050) is a sophisticated component designed for facilitating the horizontal and vertical change in direction of conveyor chains, particularly in wedge conveyors. This curve wheel is engineered to enable low-friction direction changes with very small radii, ensuring smooth operation and extended service life. It features a deflection angle of 90 degrees, which allows it to be implemented effectively in various conveyor layouts. The CAM WHEEL is constructed with high-quality materials suitable for use in environments where FDA compliance is required. The housing is made from die-cast aluminum, while the chain wheel itself is crafted from white PA (polyamide), ensuring durability and resistance to wear. The ball bearings are made from non-rusting steel and come with seals on both sides along with FDA-compliant grease filling, providing reliable performance even under demanding conditions. This product comes fully assembled, including fastening material for mounting to the AL section profile. It has been designed without interfering contours above chain plate height to maintain a streamlined profile that minimizes the risk of snagging or obstruction during operation. The effective sliding rail length and actual chain length vary based on specific application requirements. Moreover, the CAM WHEEL can be modified or extended into a curve wheel drive or alpine conveyor upon request through Bosch Rexroth's modification department. This flexibility ensures that it can meet the diverse needs of different conveyor systems. For safety purposes, when used in circuit systems without chain return in the bottom run using a curve wheel or connection drive, an appropriate cover must be utilized. In summary, this product offers a reliable solution for enhancing conveyor systems' efficiency while adhering to safety and hygiene standards required in food-grade applications or other industries where contamination prevention is crucial.

$584.80 USD

Availability: 6 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 29, 2024 when ordered in

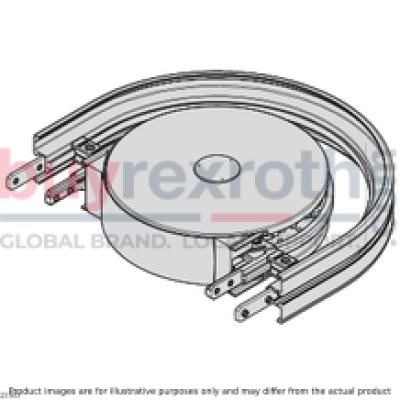

CAM WHEEL 65+ AL 90°

Curve wheel AL VFplus 65 90°

Unpacked Weight: 3.4 kg

Extension of the curve wheel to a curve wheel drive or alpine conveyor Longer service life and reduced downtimes thanks to low-friction curve technology Surfaces in contact with chain made of FDA-compliant material No interfering contours above chain plate height Can be used horizontally and vertically (for wedge conveyors)

The curve wheel is used for the horizontal change in direction of the chain. It enables low-friction direction changes with very small radii.

Size: 65, 90, 120 Deflection angles Suitable chain types: all For circuit systems without chain return in bottom run (using a curve wheel or connection drive), the appropriate cover must be used for personal safety reasons

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Surfaces in contact with chain made of FDA-compliant material
No interfering contours above chain plate height
Can be used horizontally and vertically (for wedge conveyors)

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Deflection angle [α]	90
Productgroup ID	2
Effective sliding rail length	2x 0,53
Actual chain length	2x 0,44
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.4
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Size [b]	65
Dimension [A]	185.5
Material information	Housing: Diecast aluminum,Chain wheel: PA, white,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Curve wheel AL VFplus 65 30°	Housing: diecast aluminum Chain wheel: PA; white Ball bearings: stainless steel/FDA
Curve wheel AL VFplus 65 45°
Curve wheel AL VFplus 65 90°
Curve wheel AL VFplus 65 180°
Curve wheel AL VFplus 90 30°
Curve wheel AL VFplus 90 45°
Curve wheel AL VFplus 90 90°
Curve wheel AL VFplus 90 180°
Curve wheel AL VFplus 120 30°
Curve wheel AL VFplus 120 45°
Curve wheel AL VFplus 120 90°
Curve wheel AL VFplus 120 180°

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Curve wheel AL

b	α	A	B	C	R
mm	°	mm	mm	mm	mm
65	30	185.5	324.5	279.4	153
	45	185.5	324.5	301.9	153
	90	185.5	324.5	285.5	153
	180	185.5		285.5	153
90	30	210.5	349.5	291.9	165.5
	45	210.5	349.5	319.6	165.5
	90	210.5	349.5	310.5	165.5
	180	210.5		310.5	165.5
120	30	240.5	379.5	306.9	180.5
	45	240.5	379.5	340.8	180.5
	90	240.5	379.5	340.5	180.5
	180	240.5		340.5	180.5
