SVRV12-26F-12T-N-24EG/30 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

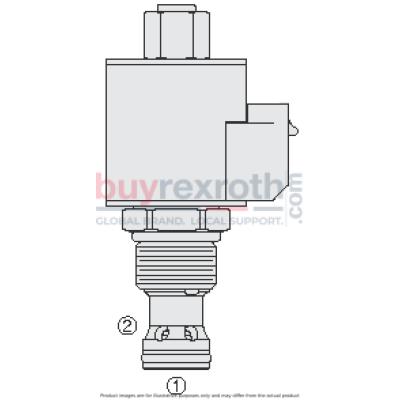

The Hydraforce 5636018 (5636018) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type relief valve designed to function as a pressure-limiting device in demanding hydraulic circuits that require fast response and low hysteresis. This valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the pilot relief, allowing the main stage to shift and open the flow from port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. Key features include adjustments that cannot be backed out of the valve, which also prevent springs from going solid. The valve's design incorporates a hardened spool and cage for extended durability and offers optional spring ranges up to 240 bar (3500 psi). Additionally, it provides rapid and smooth responses to pressure surges while maintaining cost-effective cavity requirements.
