SVRV10-26B-0-N-24EG VENTED SVRV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

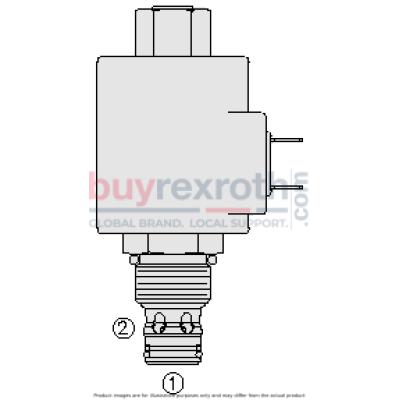

The Hydraforce 5635060 (5635060) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve. It is designed to function as a pressure-limiting device in demanding hydraulic circuits that require fast response and low hysteresis. The RV10-26X model operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, which then shifts the main (second stage) spool and opens port 1 to port 2. Notably, this valve cannot be used in cross-over relief applications. Key features include adjustments that cannot be backed out of the valve and positive stops for adjustment options A, B, and C to prevent springs from going solid. The hardened spool and cage ensure long life, while optional spring ranges extend up to 207 bar (3000 psi). This valve provides fast, smooth responses to pressure surges and fits into an industry-common cavity for ease of integration into various systems.
