SVRV10-26E-8T-N-12ER VENTED SVRV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

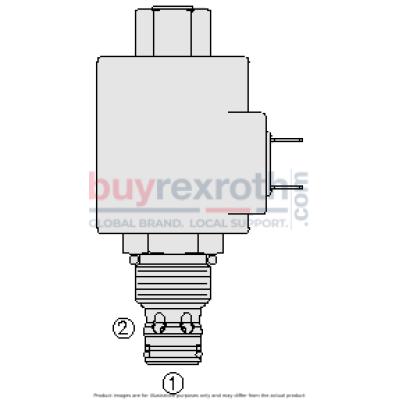

The Hydraforce 5635034 (5635034) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits requiring fast response and low hysteresis. This model effectively blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to activate the piloting relief, which then allows the main spool to shift and open port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. The RV10-26X features adjustments that cannot be backed out of the valve, with adjustment options A, B, and C providing positive stops to prevent springs from becoming solid. Constructed with a hardened spool and cage, this valve ensures long-lasting durability. Additionally, it offers optional spring ranges up to 207 bar (3000 psi) and delivers fast, smooth responses to pressure surges. The design incorporates an industry-common cavity for ease of integration into existing systems.
