SVRV10-26D-0-N-12ER VENTED SVRV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

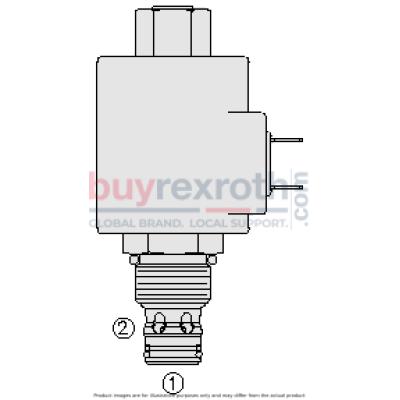

The Hydraforce SVRV10-26D-0-N-12ER (Material Number: 5635028) is a solenoid-operated, spool-type, screw-in hydraulic relief valve designed for demanding hydraulic circuits requiring fast response and low hysteresis. This normally open valve blocks flow from port 1 to port 2 until the pressure at port 1 exceeds the set pressure, at which point the pilot closes the drain flow and shifts the main spool to relieve flow from port 1 to port 2. It features a continuous-duty rated coil with various optional coil voltages and terminations, ensuring flexibility across different applications. The valve is constructed with a hardened spool and cage for enhanced durability, offering a cycle life of up to 970,000 cycles at specified pressures and flows. It operates efficiently with wet-armature construction and features optional waterproof E-Coils rated up to IP69K for superior environmental protection. The SVRV10-26D-0-N-12ER accommodates different pressure ranges up to 296.5 bar (4300 psi) and provides smooth response to pressure surges due to its efficient design. It has an industry-standard cavity VC10-2 for easy integration into existing systems. Its operating temperature range varies depending on the seal material used: -40 to 100 \u00b0C with Buna N seals, -26 to 204 \u00b0C with fluorocarbon seals, or -54 to 107 \u00b0C with polyurethane seals. The valve can handle mineral-based or synthetic fluids with lubricating properties within a viscosity range of 7.4 to 420 cSt. Designed for reliability in harsh conditions, this valve also boasts corrosion protection tested up to 960 hours in salt spray per ASTM B117 standards. Installation specifications include a cartridge installation torque of 32.5 to 35.2 N-m and compatibility with various housings and coils as additional accessories are available for customization according to specific needs.
