SVRV10-26C-0-N-24DG VENTED SVRV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

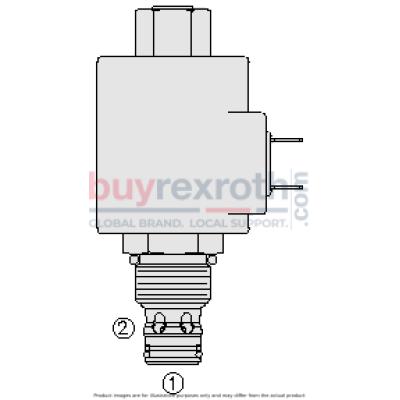

The Hydraforce 5635021 (5635021) is a high-performance, screw-in, cartridge-style hydraulic relief valve designed to serve as a pressure limiting device in demanding hydraulic circuits. This pilot-operated, two-stage spool type valve efficiently manages flow by blocking it from port 1 to port 2 until a set pressure at port 1 triggers the piloting relief. This action allows the main spool to shift and open the flow path between port 1 and port 2. Notably, this model is not suitable for cross-over relief applications. Engineered for durability, the valve features a hardened spool and cage that ensures long life and reliable operation. It offers adjustment options A, B, and C with positive stops that prevent springs from going solid, enhancing stability during operation. The RV10-26X is capable of handling optional spring ranges up to 207 bar (3000 psi), providing fast and smooth responses to pressure surges. Its design incorporates an industry-common cavity for ease of integration into existing systems.
