UP10-40A-0-V-80-30/14 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

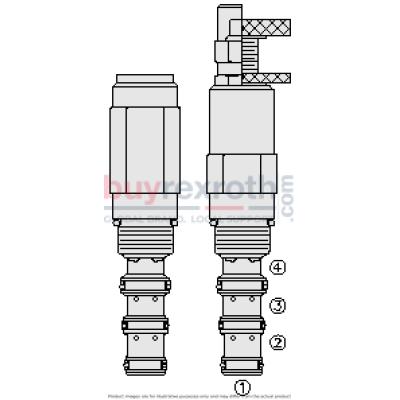

The Hydraforce 5621301V.14 (5621301V.14) is a versatile screw-in, cartridge-style remote sequence pilot unloading valve, designed specifically for accumulator-type hydraulic systems. Known as the UP10-40X, this valve offers optional fixed unload/reload pressure ratios of 60%, 70%, or 80%. In its default state, it effectively blocks flow from port 2 to port 3. Once a predetermined pressure level is reached at port 1, the spool shifts to permit flow between these ports. The spring chamber is vented through port 4, ensuring efficient operation. If the pressure at port 1 falls below the established reload value according to the set ratio, the valve automatically closes to block flow from port 2 to port 3 again. Notable features of this model include non-backable adjustments that prevent springs from becoming solid and a hardened precision spool and cage that ensure long-lasting performance. Additionally, its industry-common size allows for easy integration into existing systems.
