PR12-36B-0-V-30/ REDUCING VALVE
Manufacturer: Hydraforce
Material #: 5616913V
Model : PR12-36B-0-V-30/ REDUCING VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

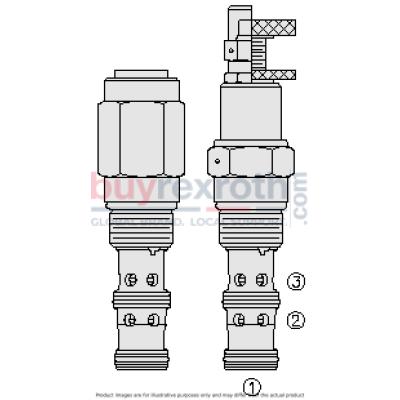

The Hydraforce 5616913V (5616913V) is a spool type, pilot operated hydraulic pressure reducing/relieving valve specifically designed for regulating pressure in secondary circuits. Known as the PR12-36X, this valve features an internal pilot and an internally drained spring chamber. In its steady state, it allows bidirectional flow from port 2 to port 1 while maintaining a constant drain at port 3. When a predetermined pressure is reached at port 1, the spool shifts to restrict inlet flow from port 2, effectively regulating the pressure at port 1. Additionally, in this mode, the valve can relieve pressure from port 1 to port 3. It's important to note that tank pressure is additive to the regulated pressure. The valve's design ensures that adjustments cannot be backed out, preventing springs from going solid and offering optional spring ranges up to 207 bar (3000 psi).
$98.75 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as December 14, 2026
| Ratings: | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 241.3 bar (3500 psi) Port 2 103.4 bar (1500 psi) Port 3 Proof pressure: 517.1 bar (7500 psi) At all ports Burst pressure: 1034 bar (15000 psi) Flow Ratings Flow rating: 189.2 lpm (50 gpm) Maximum pilot flow: 0.170 lpm (0.045 gpm) With maximum adjustment setting and with inlet pressure of 241 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gpr12-36x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 All surfaces in contact with working fluid to meet jds-g169, 5.6 cleanliness level 0.5 mm (0.02 in) Absolute maximum particle size. Packaging to maintain cleanliness level during shipping and handling 1.1 mg Maximum allowable contaminant |
| Performance: |   |
| Installation Specifications: | Cavity:
VC12-3 12-size-3-way Cavities Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION PR12-36DFG-H-J-R/S D Rapid Response Option D BLANK Standard D R Rapid Response F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 8T Aluminum SAE 8 H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 12TD Ductile Iron SAE 12 H 6B Aluminum BSPP 3/4" (6) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 10.3 to 103 bar (150 to 1500 psi) Spring Range R 30 20.7 to 207 bar (300 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
