CR10-28B-8T-N-24/ CROSS OVER REL
Manufacturer: Hydraforce
Material #: 5613976
Model : CR10-28B-8T-N-24/ CROSS OVER REL
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

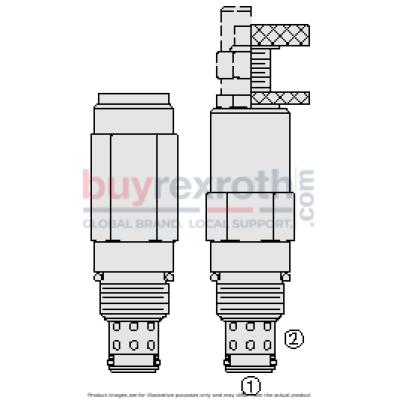

The Hydraforce 5613976 (5613976) is a screw-in, cartridge-style, direct-acting, differential area poppet type bidirectional hydraulic relief valve. This versatile component is designed to manage hydraulic pressure by allowing flow between ports when the pressure exceeds a predetermined setting. Notably, the valve operates such that back pressure at either port directly influences the nominal setting of the opposite port on a 1:1 basis. The design ensures that adjustments cannot be backed out of the valve and are constructed to prevent springs from going solid, enhancing reliability and operational safety. The hardened spool and cage construction contribute to its durability and longevity. The CR10-28 model fits within an industry-common size, making it easily adaptable for various applications requiring precise pressure control in hydraulic systems.
$156.50 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as October 21, 2026
| Ratings: | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Proof pressure: 345.6 bar (5000 psi) Burst pressure: 896.3 bar (16000 psi) Reseat pressure: 90% of crack pressure at 0.95 lpm (0.25 gpm) Crack pressure: 10.5 bar (150 psi) Maximum difference both directions Flow Ratings Flow rating: 60 lpm (16 gpm) Maximum internal leakage: 33 ml/min (2 in³/min) When reseat to 80% of crack pressure Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.6 N-m (25 to 27 ft-lb) 68 N-m (50 ft-lb) Plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION CR10-28F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 24 14 to 168 bar (200 to 2400 psi) Spring Range R 30 160 to 210 bar (2300 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
