RV10-28A-4B-N-42/ RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

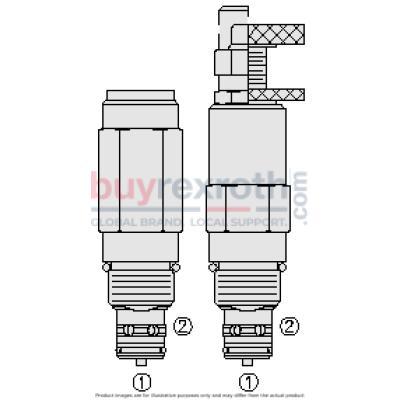

The Hydraforce 5613739 (5613739) is a versatile RV10-28X screw-in, cartridge-style, pilot-operated relief valve with a reverse free flow check valve. This product is specifically designed for use in demanding hydraulic circuits that require features such as fast response times, low hysteresis, minimal leakage, reduced pressure override, and reverse free flow capabilities. The RV10-28X efficiently blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level, at which point the relief flow path is activated between these two ports. Additionally, it allows reverse flow from port 2 to port 1 when the pressure at port 2 surpasses that of port 1. The valve offers a variety of adjustment options that are secure and cannot be inadvertently backed out of the valve. It can function in either relief valve mode or check valve mode, providing flexibility in application. With several available pressure ranges and a hardened spool and cage for enhanced durability and long life, this model ensures reliable performance. Its fast response feature makes it suitable for dynamic systems requiring quick adjustments. Furthermore, its industry-common size facilitates easy integration into existing hydraulic systems or designs.
